Defender MIDI 4C - Cable Protector 4-channel

Defender MIDI 4C - Cable Protector 4-channel
1093.81 Lei
765.67 Lei
*pretul include TVA
La comanda
cod produs: 85301
Descrierea Produsului

3 medium-sized cable channels – 1 large channel for fire hoses

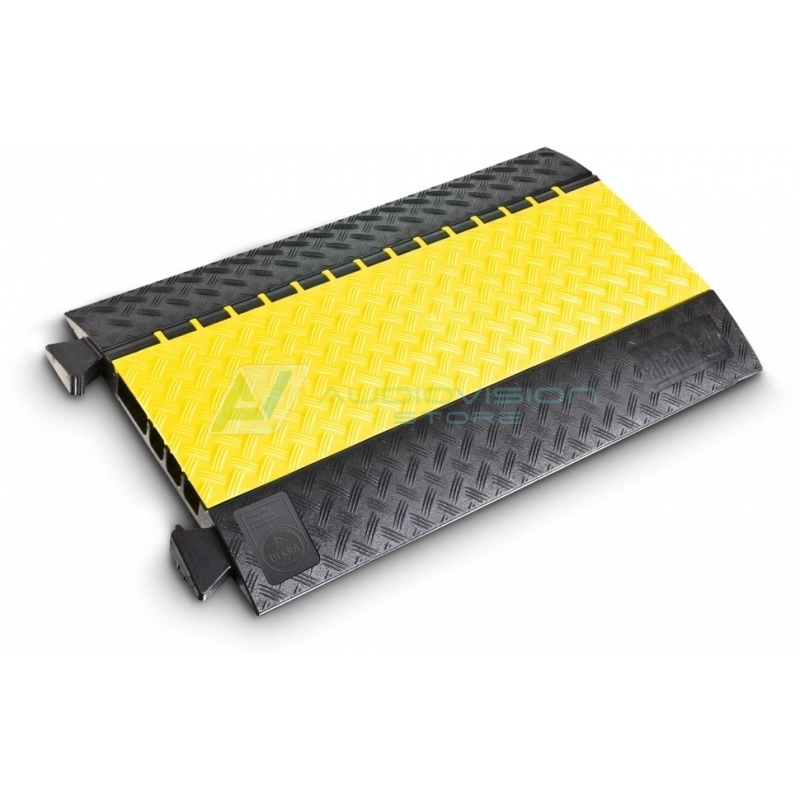

The Defender® MIDI 4C cable crossover has three cable channels measuring 34 x 36 mm plus a wide hose channel (80 x 36 mm), making it the ideal solution if a pressure hose has to run parallel to individual sound, light and/or network cables. With its integrated connectors, flat profile and a capacity of 5 tonnes on an area of 20 x 20 cm (like the Defender MIDI system), MIDI 4C cable crossovers are perfect for heavy traffic, construction sites, warehouses, shopping centres, trade shows and exhibitions, as well as carnival and music events.

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.

  • The standard for event technology, industry and all public applications
  • Heavy duty non-slip all-round cable protectors made out of black, recyclable polyurethane with integrated carrying handles
  • Yellow polyethylene cover with high warning effect and secure locking

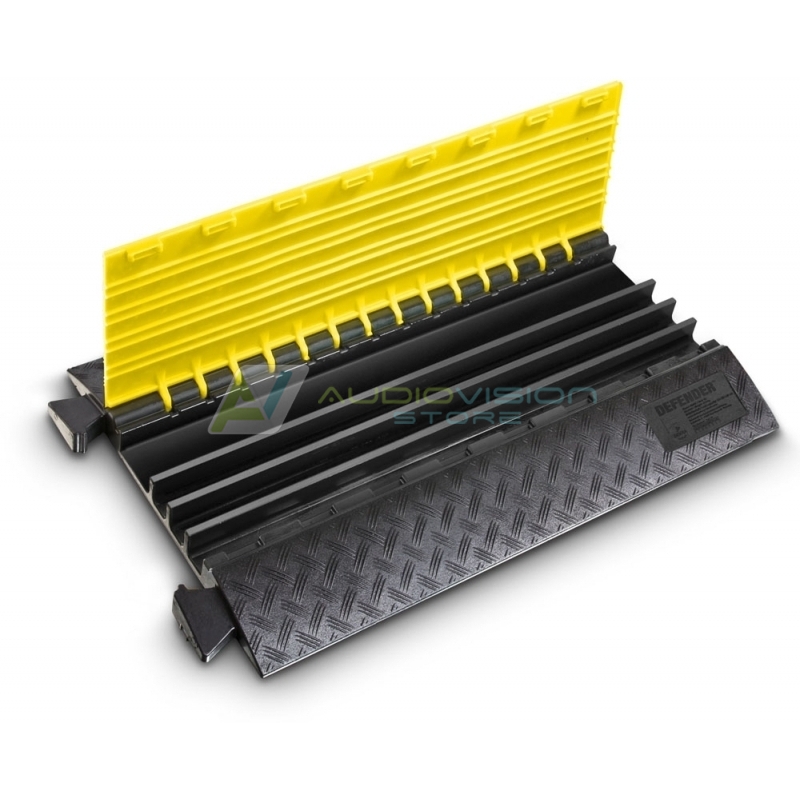

  • Patented self-cleaning hinged cover
  • 4 channels: 1 channel 80 x 36 mm (for C-pressure hoses) and 3 channels 34 x 36 mm
  • Load capacity approximately 5 t/20 cm²
  • Fire protection class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
  • Resistant to oil, acid, petrol and short-term contact with solvents
  • Dimensions 87 x 54.2 x 5.2 cm; weight 11.5 kg
  • Reliable cable, hose and personal protection for indoor and outdoor use
  • End caps for safe cable entry and exit available as accessories
Product typeCable Protectors
Type4 Channels
Length870 mm
Width542 mm
Height52 mm
Width channel 134 mm
Height channel 136 mm
Width channel 234 mm
Height channel 236 mm
Width channel 334 mm
Height channel 336 mm
Width channel 480 mm
Height channel 436 mm
Max. loadapprox. 5t on a surface area of 20 x 20 cm
Chemical resistanceacid-resistant, oil-resistant, petrol-resistant, Short-term contact with solvents
Hardness range88 Shore ± 4 A Shore
Fire protection classB2
Temperature range-30°C to 60°C °C
Weight11,8 kg
Special featureDEKRA-certified
