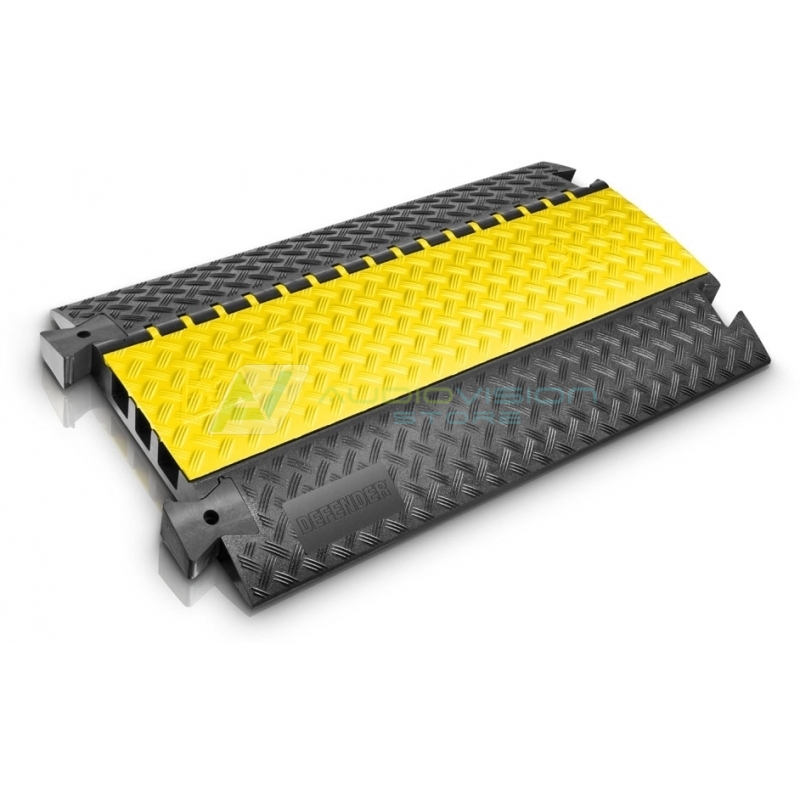

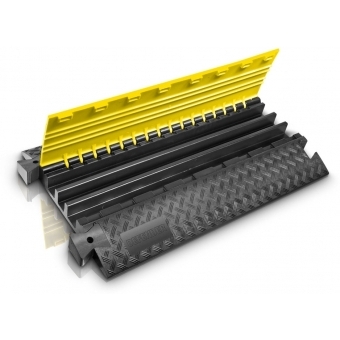

de la in 60 de rate fixe.Featuring a 73 mm profile, 45° curve and end ramps with detachable dovetail connectors the Defender® 3 cable protection system provides versatile cable routing and safe crossing for vehicles and pedestrians. With 3 medium large channels, built-in handles for easy portability and a 5 t per 20 x 20 cm load capacity the 73 mm profile Defender® 3 cable protectors are the perfect all-round choice for a wide variety of applications including heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls and music events.

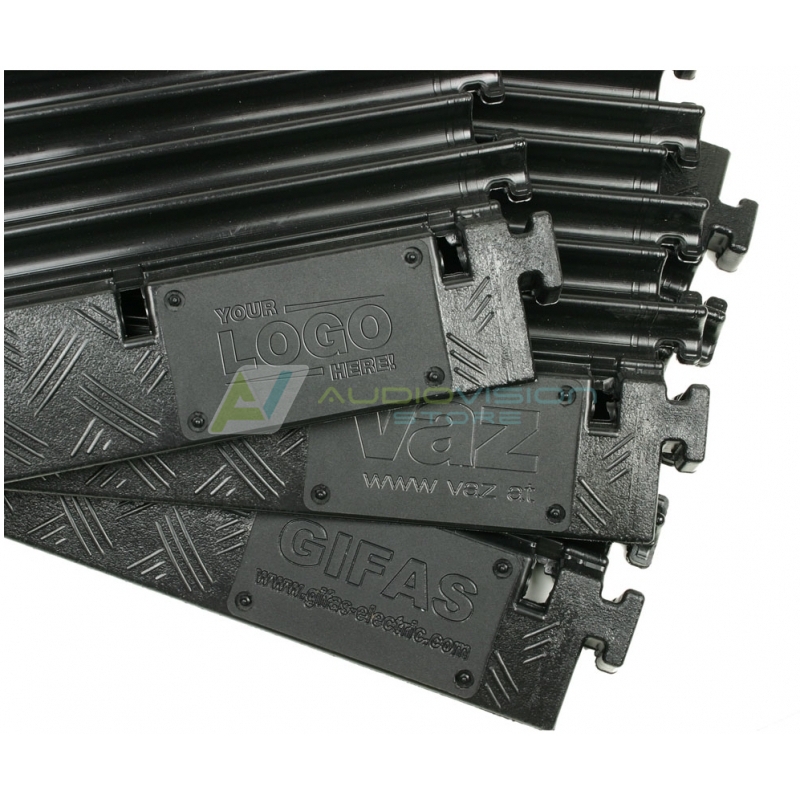

Label your cable crossovers! Customise the Defender cable crossovers with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.
| Product type | Cable Protectors |
| Type | 3 Channels |
| Width | 600 mm |
| Height | 73 mm |
| Length | 1000 mm |
| Channels | 3 |
| Width channel 1 | 52 mm |
| Height channel 1 | 49 mm |
| Width channel 2 | 45 mm |
| Height channel 2 | 50 mm |
| Width channel 3 | 56 mm |
| Height channel 3 | 49 mm |
| Material | Polyurethane |
| Max. load | approx. 5 t on a surface area of 20 x 20 cm |
| Chemical resistance | acid-resistant, oil-resistant, petrol-resistant, Short-term contact with solvents |
| Hardness range | 88 Shore ± 4 Shore |
| Fire protection class | B2 |
| Temperature range | -40 to +70 °C |
| Weight | 22,82 kg |
| Special feature | available also in B1, DEKRA-certified, Inclusive 2 connector plugs |
