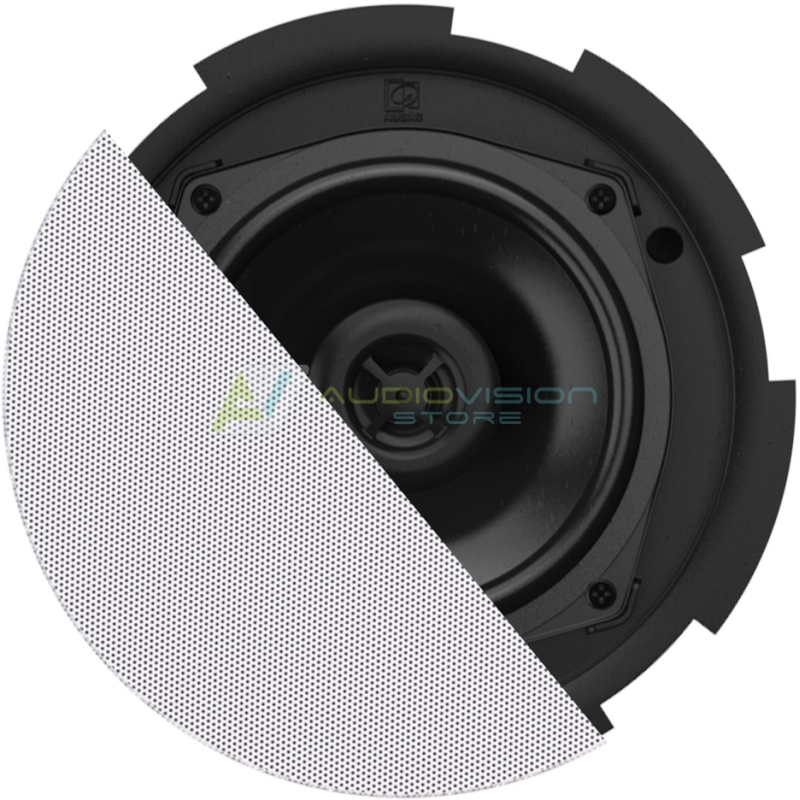

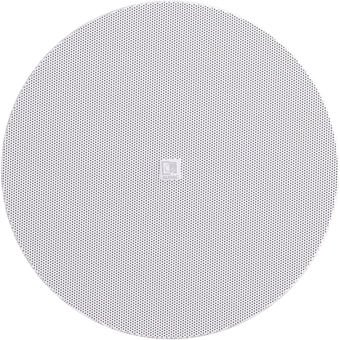

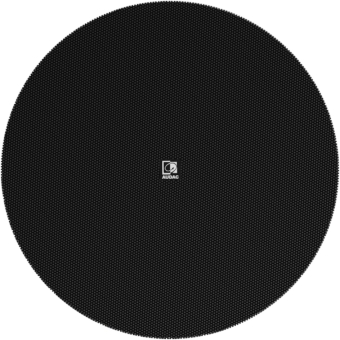

de la in 48 de rate fixe.Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.

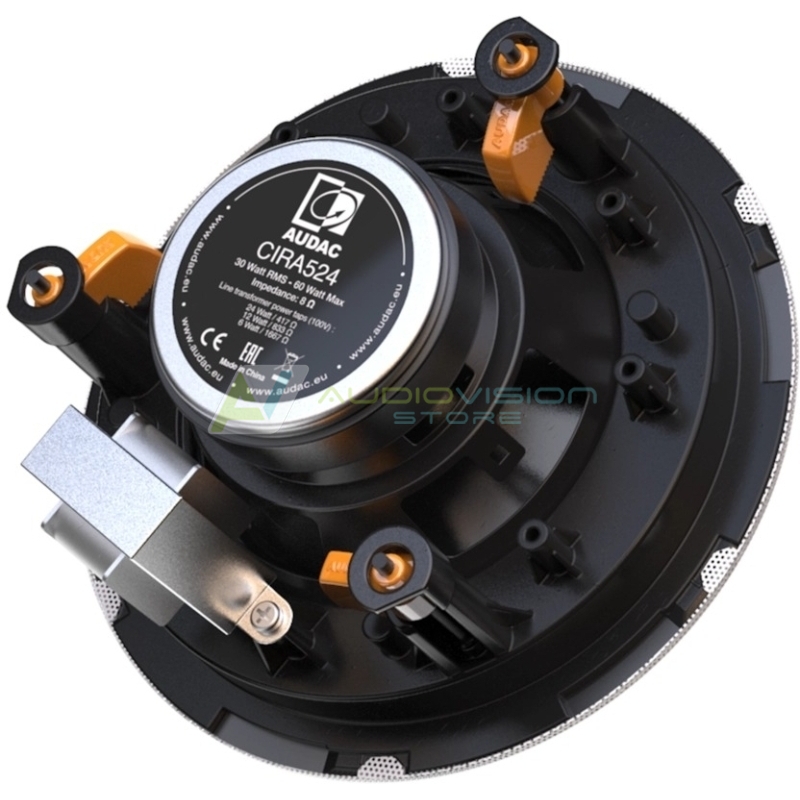

The CIRA5 features a 5 ¼” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W, 3W, 1.5W and an 8 Ohm or 16 Ohm bypass connection.
| System specifications | ||
|---|---|---|
| Program power handling | 60 W | |
| Continuous power (AES) | 30 W | |
| Sound Pressure (Max. W/1m) | @ 100 V | 102 dB |
| Sensitivity (1W/1m) | 87 dB | |
| Frequency | Response (± 3 dB) | 60 Hz - 20 kHz |
| Speaker type | 2-way coaxial | |
| Impedance | 16 Ω (CIRA530D) | |
| Impedance | 8 Ω (CIRA506 & CIRA524) | |
| Frequency | Range (-10 dB) | 45 Hz - 20 kHz |
| Coverage | Conical | 145° |
| Connectors | Multi-tap Fast-con™ connections | |
| Drivers | LF | 5 ¼" woofer |
| Drivers | HF | 1” |
| Line Transformer Tappings | 1 | 6 W - 1667 Ω (CIRA506) |
| Line Transformer Tappings | 1 | 24 W - 417 Ω (CIRA524) |
| Line Transformer Tappings | 2 | 3 W - 3333 Ω (CIRA506) |
| Line Transformer Tappings | 2 | 12 W - 833 Ω (CIRA524) |
| Line Transformer Tappings | 3 | 1.5 W - 6667 Ω (CIRA506) |
| Line Transformer Tappings | 3 | 6 W - 1667 Ω (CIRA524) |
| Peak power handling | 120 W | |
| Product features | ||
|---|---|---|
| Cut-out measurement | 170 mm (Ø) | |
| Dimensions | 193 x 83 mm (Ø x D) | |
| Weight | 1.10 kg (CIRA506) | |
| Weight | 1.15 kg (CIRA524) | |
| Weight | 1.05 kg (CIRA530D) | |
| Construction | ABS | |
| Finish | Front finish | TwistFix™ borderless finely perforated steel grill |
| Mounting | QuickFit™ mounting system | |
| Colours | White (RAL9003) (CIRA506/W, CIRA524/W & CIRA530D/W) | |
| Built-in depth | 83 mm (CIRA524) | |
| Built-in depth | 75 mm (CIRA506 & CIRA530D) | |
| Dimensions | 193 mm (Ø) | |
| Operating temperature | -20 °C ~ 60 °C | |
