The unbeatable one. The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects. The SpringFit™ fixation offers the fastest possible installation time of any speaker available on the market, while the borderless grill design is absolutely unseen for any ceiling speaker in this segment. With the selection of high-quality cone materials, exceptional intelligibility and background music performance are guaranteed. The CENA Series are equipped with SnapConnect™, a faster, more reliable and safer choice for fixed installations, accepting solid and stranded wires with sections up to 4.0 mm².
The CENA3 features a 2,5” broadband driver with a continuous power handling of 10 Watt (RMS) and maximum power handling of 20 Watt. It is fitted with a multi-tapping 100V line transformer with tappings for 6W and 3W.
| System specifications | ||
|---|---|---|
| Program power handling | 20 W | |
| Continuous power (AES) | 10 W | |
| Sound Pressure (Max. W/1m) | @ 100 V | 97 dB |
| Sensitivity (1W/1m) | 87 dB | |
| Impedance | 8 Ω | |
| Frequency | Response (± 3 dB) | 120 Hz - 20 kHz |
| Line Transformer Tappings | 1 | 6 W / 1667 Ω |
| Line Transformer Tappings | 2 | 3 W / 3333 Ω |
| Drivers | 2,5” Full Range | |
| Speaker type | Broadband | |
| Coverage | Conical | 160° |
| Connection | SnapConnect™ | |
| Frequency | Range (-10 dB) | 95 Hz - 20 kHz |
| Peak power handling | 40 W | |
| Product features | ||
|---|---|---|
| Construction | ABS | |
| Finish | Front finish | borderless finely perforated steel grill |

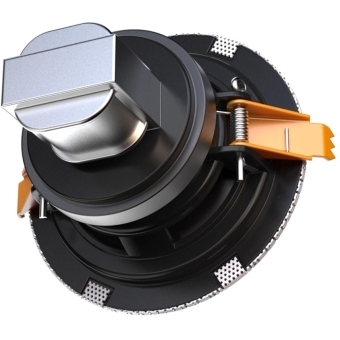

| Mounting | SpringFit™ mounting system | |
| Colours | White (RAL9003) (CENA306/W) | |
| Colours | Black (RAL9005) (CENA306/B) | |
| Cut-out measurement | 80 mm (Ø) | |
| Dimensions | 95 x 72 mm (Ø x D) | |
| Operating temperature | -15 °C ~ 55 °C | |
| Weight | 0.36 kg | |
