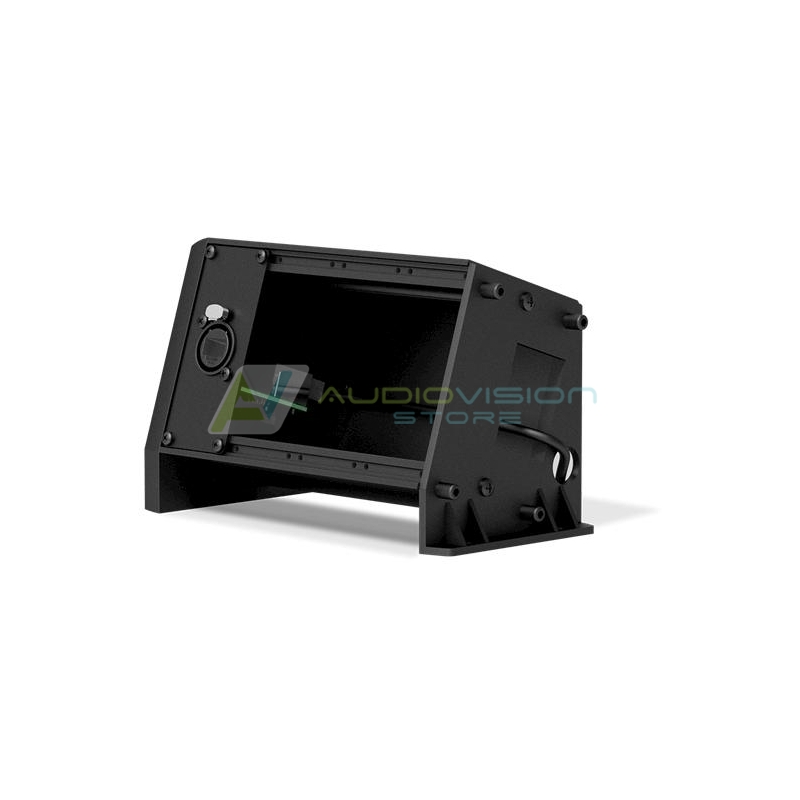

CASY018/B - CASY On-Table Chassis - 8 space - Black

Caymon
cod produs: CASY018/B
La comanda
245.59 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

The CASY018 is a modular desktop chassis which can be fitted with 8 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing the system to be adapted to project specific requirements. Possibilities range from audio, video and data interconnection to power distribution, control panels, power supplies and many more.

The aluminum construction features pre-threaded hole inserts allowing module installation with a maximum of 8 units with a built-in depth upto 60 mm. It can be mounted on any table or desk, offering convenient connections in studio, broadcast or office environments. Cable entry is possible through large access holes on the rear or guiding through the side covers. The sides are constructed out of ABS material and modules can be fixed inside the unit using the included M3 screws. The overall construction is finished in a black (RAL9004) structured and scratch resistant powder coating.

Highlights

  • Flexible structure for system integration & connectivity
  • Wide variation of compatible modules available
  • Stores 8 units of CASY modules
  • 18° angle
  • 60 mm usable depth
  • Pre-threaded mounting profile for easy assembly
  • Aluminum extruded construction with rounded ABS sides
  • Structured and scratch resistant black powder coating
Product features
ModuleUnits8 x front side
Dimensions316 x 108.1 x 88.2 mm (W x H x D)
Max. usable depth60 mm
Weight0.6 kg
ConstructionAlu extrusion with plastic side covers
ConnectionLarge access holes on rear side Cable duct or gland entry on sides
FinishStructured powder coating
ColoursBlack (RAL9004)
