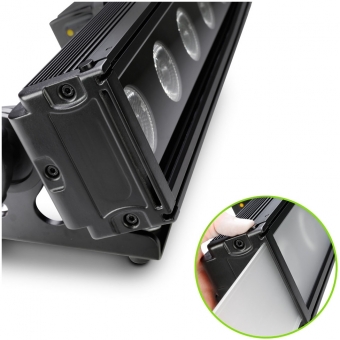

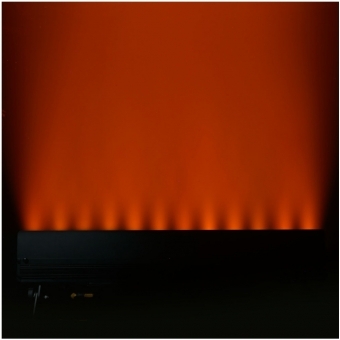

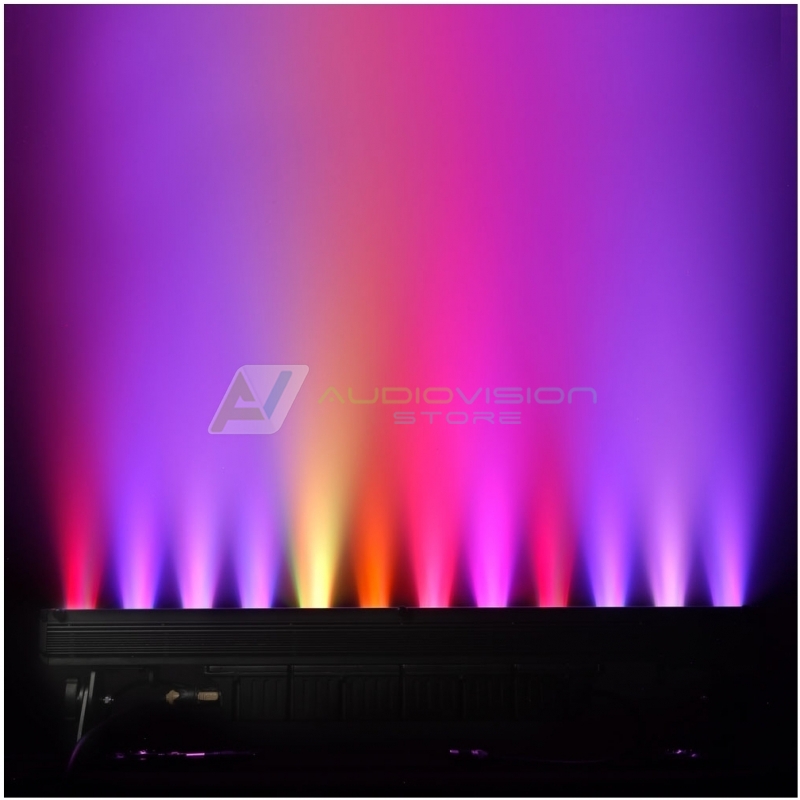

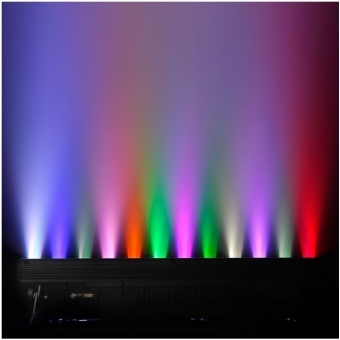

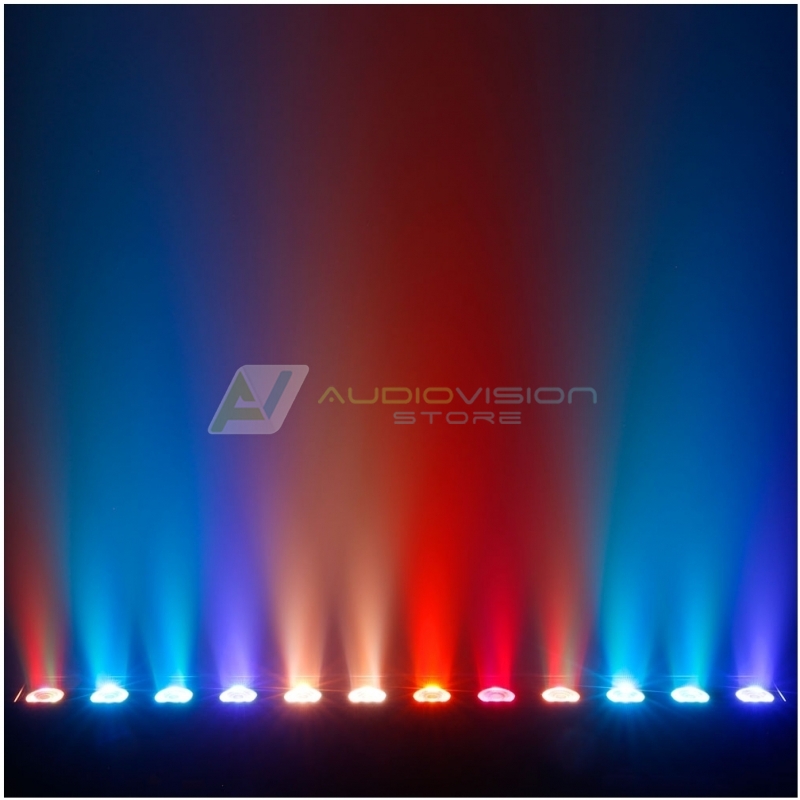

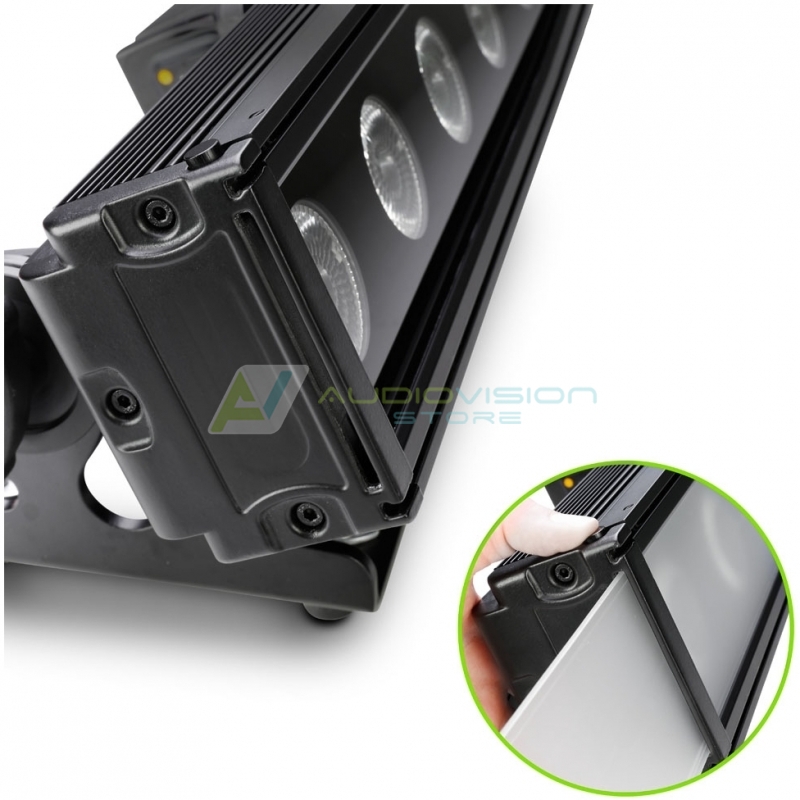

de la in 60 de rate fixe.Featuring 12 ultra bright 12 watt 6-in-1 LEDs and 22° beam width the Cameo PixBar 600 PRO IP65 creates impressive RGBWA+UV washes. Highly efficient convection cooling ensures noiseless performance, and with a 3,600 Hz refresh rate the IP65 rated outdoor fixture is flicker-free and suitable for TV and motion picture applications. The wash light comes with 2 diffusors to change beam and field angles from 22° and 72° to 52° and 92° while providing smooth lighting with minimum dazzle.
The PixBar 600 PRO IP65 is RDM enabled allowing bi-directional communication with a dedicated controller for addressing, configuration and status reporting. It provides 7 modes of DMX control and sports 14 automated lightshows, 4 selectable dimming curves, a strobe function and standalone, master or slave capability. The fixture includes single pixel control, color temperature correction and macros calibrated to the LEE filters standard for additional effects and flexibility.

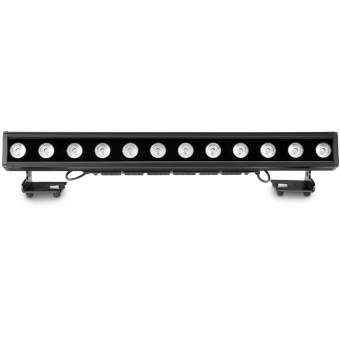

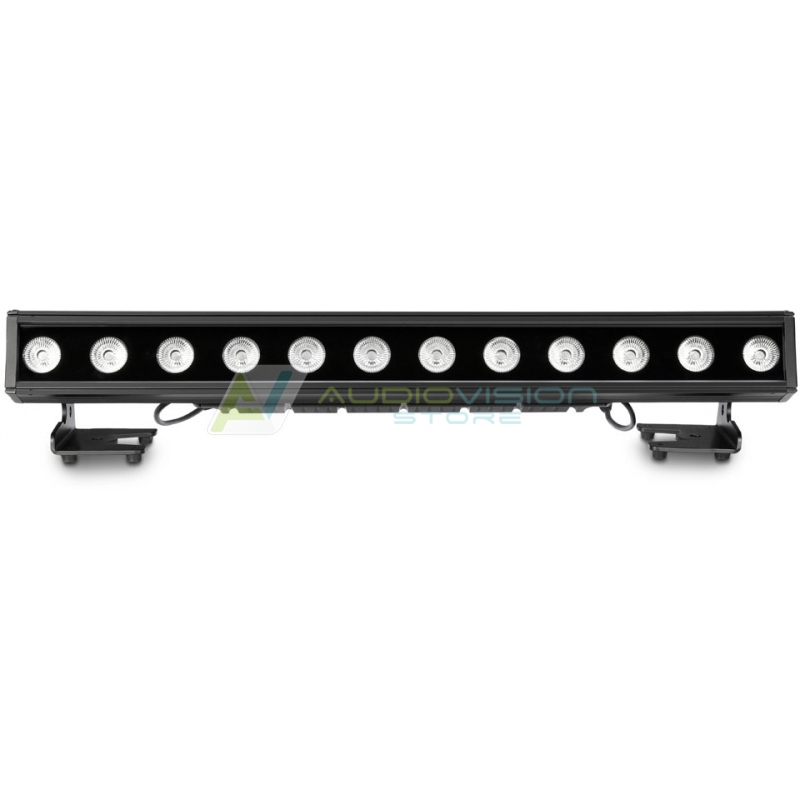

The rugged aluminium enclosure features a backlit 4-button display with security lock to prevent unauthorized menu access, Neutrik X-HD series 5-pin DMX inputs and outputs and powerCON TRUE1 mains connectors.
| Product type | LED Bars |
| Type | Outdoor |
| Colour spectrum | RGBWA+UV |
| Number of LEDs | 12 |
| LED type | 12 W 6in1 colour |
| Dispersion | (Beam) 22° / (Field) 72 °, (Beam) 52° / (Field) 92 ° |
| Refresh rate | 3600 Hz |
| DMX input | 5-pin Neutrik X-HD |
| DMX output | 5-pin Neutrik X-HD |
| DMX mode | 12-channel, 2-channel, 6-channel 1, 6-channel 2, 74-channel, 78-channel, 8-channel |
| DMX Functions | 14 auto modes, colour fade, colour jump, colour macro, Colour temperature correction, Dimmer, Single Pixel Control, strobe |
| Standalone modes | 14 auto modes, static colour, strobe |
| Controls | Enter, Mode, Value Down, Value Up |
| Indicators | backlit LCD |
| Operating voltage | 110 V AC - 240 V AC / 50 – 60 Hz |
| Power consumption | 160 W |
| Power connector | Neutrik powerCON TRUE1 IN (NAC3FX-W) / OUT (NACMFX-W) |
| Housing material | Die-cast aluminum |
| Cooling | Convection |
| Cabinet colour | Black |
| Illuminance | 7900 lx @ 1 m |
| Protection class IP | 65 |
| Operating Temperature | -15 - 45 °C |
| Width | 854 mm |
| Height | 130 mm |
| Depth | 90 mm |
| Weight | 8,7 kg |
