de la in 60 de rate fixe.The Cameo PixBar 400 PRO is a professional LED bar with 12 ultra bright 8 watt Quad-LEDs and RDM compatibility enabling bi-directional communication. It provides vibrant RGBW colour mixes, 4 selectable dimming curves, macros calibrated to the LEE filters standard and single pixel control for stunning chase effects.
Attached to a dedicated controller the RDM protocol enhancement allows convenient addressing, configuration and status monitoring of the PixBar 400 PRO. The fixture is also capable of standard DMX control in 7 modes and standalone, master or slave operation. It features autorun software, a built-in microphone for music control and a backlit display with Mode, Enter, Up and Down keys for manual control.
With highly efficient convection cooling the PixBar 400 PRO is absolutely noiseless, and the 3,000 Hz refresh rate ensures flicker free performance. Additional features of the fixture are colour temperature correction and 3 temperatures of white: warm white, white, cool white.

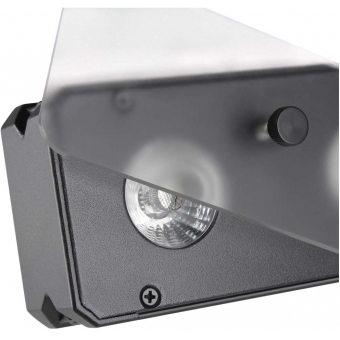

The PixBar 400 PRO comes in a rugged aluminium enclosure with 3 and 5-pin DMX inputs and outputs, Neutrik powerCON mains connectors and a solid stand that doubles as mounting bracket.
| Product type | LED Bars |
| Type | Indoor |
| Colour spectrum | RGBW |
| Number of LEDs | 12 |
| LED type | 8 W QUAD Colour |
| Dispersion | 18 ° |
| Refresh rate | 3000 Hz |
| DMX input | XLR 3-pin male, XLR 5-pin male |
| DMX output | XLR 3-pin female, XLR 5-pin female |
| DMX mode | 10-channel, 2-channel, 4-channel 1, 4-channel 2, 50-channel, 54-channel, 6-channel |
| DMX Functions | Auto programs, colour macro, Colour temperature correction, Dimmer, Single Pixel Control, sound programs, strobe |
| Standalone modes | Auto programs, sound programs, static colour, strobe |
| Controls | Enter, Mode, Value Down, Value Up |
| Indicators | LC display |
| Operating voltage | 110 V AC - 240 V AC / 50 – 60 Hz |
| Power consumption | 90 W |
| Power connector | Neutrik PowerCon |
| Housing material | Die-cast aluminum |
| Cooling | Convection |
| Cabinet colour | Black |
| Illuminance | 550lx @ 1m |
| Width | 900 mm |
| Height | 117 mm |
| Depth | 70 mm |
| Dimensions of the mounting bracket (incl. rubber feet) | 495 x 140 x 100 mm |
| Weight | 6 kg |
