BAE100 - Bluetooth extender kit

BAE100 - Bluetooth extender kit
163.64 Lei
*pretul include TVA
La comanda
cod produs: BAE100
Descrierea Produsului

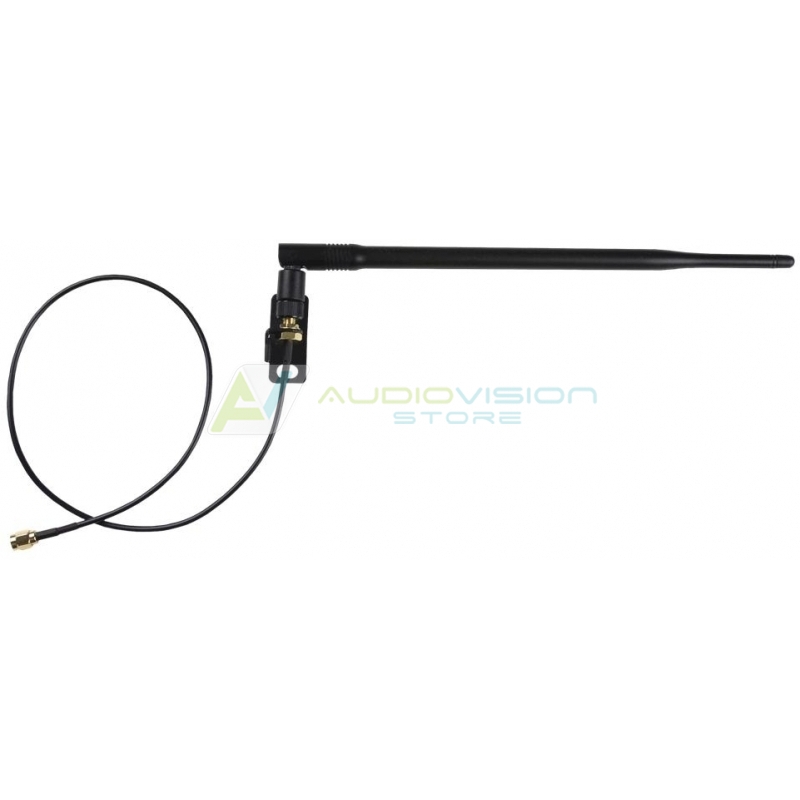

The BAE100 Bluetooth antenna extender kit, allows increasement of reception range for a Bluetooth (2.4 GHz) receiver when installed to a 19" equipment rack or any other (shielded) enclosure. The kit includes a 7 dBi (279 mm) antenna with a higher gain and reception range compared to most standard antenna's. It consists of a special multifunctional mounting bracket that offers the possibility to mount to a single 19" rack space enclosure. Mounting of the antenna on front of a 19" device (e.g. preamplifier with Bluetooth functionality) can also be done with the included 1 meter connection cable (SMA Male - Female), while the included 5 meter cable allows placement outside of the enclosure (e.g. wall mounting). Connections are made by SMA type connectors.


  • Bars, restaurants
  • Retail
  • Hotels
  • Corporate spaces
  • Public facilities
System specifications
FrequencyRange2.4 GHz ~ 2.5 GHz
Impedance50 Ω
AntennaGain7.0 dBi
Polar PatternOmnidirectional
ConnectionSMA Straight plug reverse
Product features
Dimensions12 x 279 mm (Ø x L)
Weight0.135 kg (incl accessories)
