Incepeti-va calătoria in lumea inregistrarii audio cu pachetul Start Recording, o solutie profesionala, puternica si versatila pentru inregistrari. Experimentati o combinatie de performanta audio remarcabila si tehnologie inovatoare pentru a va asigura ca realizati inregistrari cu o calitate de studio inca de la inceput.
Preamplificare microfon
| Mic Gain Range: |
58dB |
| Line Gain Range: |
58dB (-10dB pad) |
| Phantom Power: |
48v +/-4v @ 10mA/Channel |
| Mic EIN: |
<-128dBu |
| CMRR: |
>85dB @ 1kHz |
| Maximum Input Level: |
+16dBu |
| Input Impedance (Mic): |
>3kΩ Balanced |
| Input Impedance (Line): |
>10kΩ Balanced |
| Frequency Response: |
+/-0.5dB 10Hz to 40kHz |
| Crosstalk: |
<-105dBu @ 1kHz & 10kHz |
| THD+N @ 0dBu (1kHz): |
<0.0015% |
| SNR: |
100dB |
| XLR: |
Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield) |
| 1/4” Jack: |
TIP (Hot), RING (Cold) & SLEEVE (Shield) |
D.I
| D.I Gain Range: |
58 dB |
| Maximum Input Level: |
+10dBu |
| Input Impedance: |
1MegΩ Unbalanced |
| Frequency Response |
+/-0.5dB 10Hz to 20kHz |
| THD+N @ 0dBu (1kHz): |
<0.3% |
| SNR: |
100dB |
| 1/4” Jack: |
TIP (Hot) & SLEEVE (Shield) |
ADC Inputs
| Digital Reference Level: |
0dBFS = +8dBu |
| Frequency Response: |
+/-0.5dB 10Hz to Fs/2 |
| Crosstalk: |
-105dBu @ 1kHz & 10kHz |
| THD+N @ -1dBFS (1kHz): |
<0.001% |
| Dynamic Range: |
113dB A-weighted |
Iesiri DAC
| Maximum Output Level: |
+11dBu |
| Digital Reference Level: |
0dBFS = +11dBu |
| Output Impedance: |
<100Ω Balanced |
| Frequency Response: |
+/-0.5dB 10Hz to Fs/2 |
| Crosstalk: |
<-110dBu @ 1kHz |
| THD+N @ -1dBFS (1kHz): |
<0.0015% |
| Dynamic Range: |
113dB A-weighted |
| 1/4” Jack: |
TIP (Hot), RING (Cold) & SLEEVE (Shield) |
Iesire casti
| Output Impedance: |
<50Ω |
| Frequency Response: |
+/-0.5dB 10Hz to Fs/2 |
| Crosstalk: |
-110dBu @ 1kHz |
| THD+N @ -1dBFS (1kHz): |
<0.0015% |
| Dynamic Range: |
113dB A-weighted |
| Max Level Into 30ohms: |
+0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW |
| Max Level Into 60ohms: |
+4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW |
| Max Level Into 600ohms: |
+10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW |
| 1/4” Jack: |
TIP (Left), RING (Right) & SLEEVE (Shield) |
Latenta mixer DSP :
(in to out)
| 44.1 kHz |
0.594ms |
| 48.0 kHz |
0.552ms |
| 88.2 kHz |
0.302ms |
| 96.0 kHz |
0.281ms |
Latenta Playback DAW
@ 32 Sample Buffer for Software Instrument Playback
| 44.1 kHz |
~2.5ms |
| 96.0 kHz |
~2ms |
Latenta DAW
@ 32 Sample Buffer (in to out)
| 44.1 kHz |
5ms |
| 96.0 kHz |
4.1ms |
Latency – performance may vary as stability at these low buffer sizes is dependant on many factors including CPU load, operating system and performance of other drivers.
USB 2.0
| No. Of Input Channels |
2 Analogue |
| No. Of Output Channels |
2 Digital |
| Connector: |
USB Type-C |
| Included Cables: |
1m USB 2.0 Type-C to USB Type-A |
Greutate si Dimensiuni
| Weights: |
Unit: |
360g |
| |
Packaged: |
600g |
| Dimensions: |
Unit: |
140mm (w) x 67mm (h) x 67mm (d) |
| |
Packaged: |
172mm (w) x 88mm (h) x 97.5mm (d) |

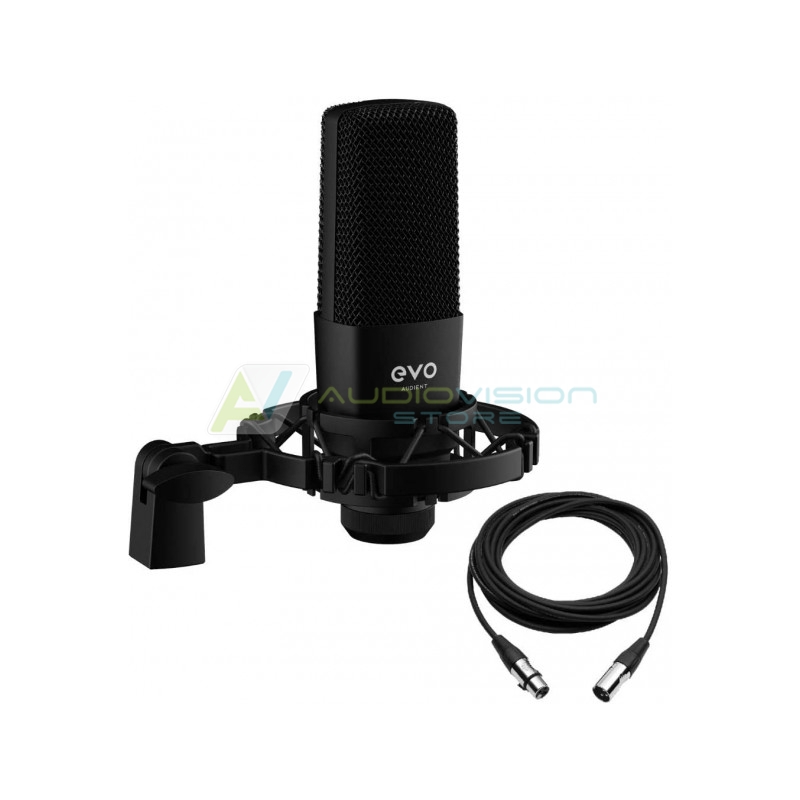

EVO SR1 Microfon condenser
| Element |
14mm back electronic condenser capsule |
| Polar Pattern |
Uni-directional(Super-cardioid) |
| Frequency Response |
20Hz-18kHz |
| Sensitivity |
30dB±3dB (0dB=1V/Pa at 1kHz) |
| Output Impedance |
150Ω±30% (at 1kHz) |
| Load Impedance |
≥1000Ω |
| Self Noise |
16dB A |
| Max. Input SPL |
134dB (at 1kHz ≤1% T.H.D) |
| S/N Ratio |
78dB |
| Phantom Power Requirement |
5V or 48V |
| Electrical Current |
3mA |

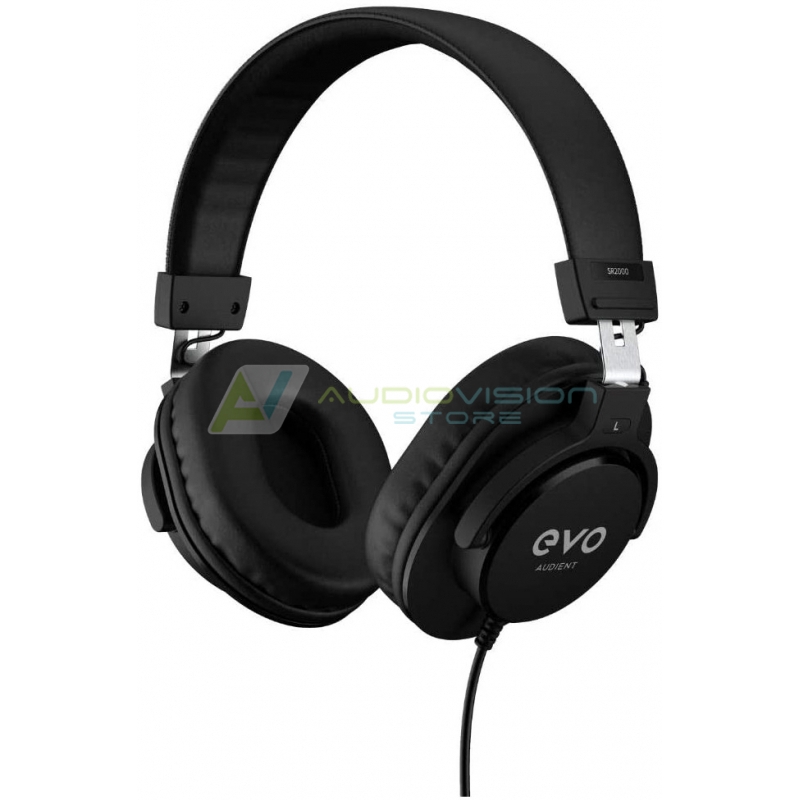

EVO SR2000 Casti monitorizare
| Operating Principle |
Closed |
| Fashion |
Supra-aural |
| Transducer Type |
Dynamic |
| Loudhailer |
40MM |
| Impedance |
32ohm |
| Sensitivity/ Max. SPL |
95±3dB/105±3dB |
| THD |
<0.3% |
| Frequency Response |
15HZ-22KHZ |
| Max. Power |
400MW |
| Rating Power |
250MW |
| Cable Type |
Straight |
| Cable Length |
About 3M (straight) |
| Plug |
3.5MM+6.3MM |
| Net Weight |
233g(with cable) |
| Norminal Headband Pressure |
Approx.2.8N |
