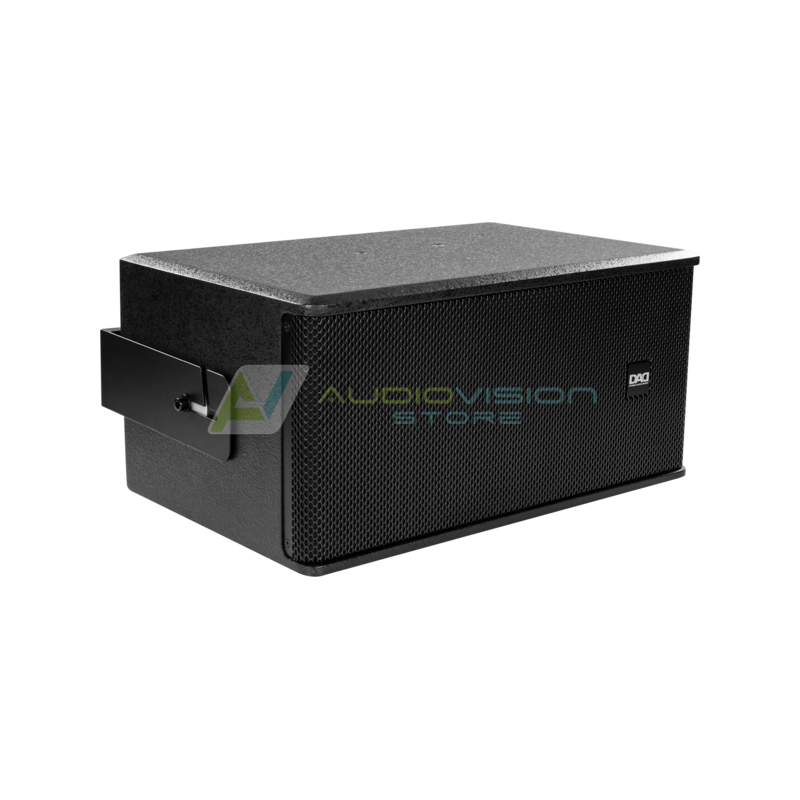

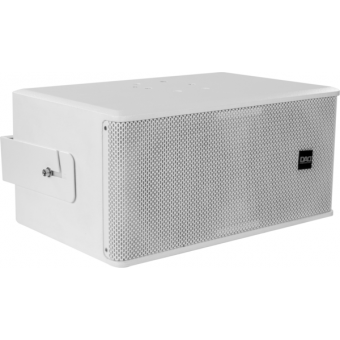

Bass-reflex active subwoofer, 2x700 W D-class amplifier, 121dB SPL
Features:Low frequency: 2x8'' woofer/2'' v.c.
Frequency response: 40-200 Hz (±3dB)
Built-in DSP: fully adjustable
Remote control with RJ45 port via ARK485UR accessory
ARK208SA amplified subwoofer speaker can drive up to 4 full range speakers of the ARK series plus an additional ARK208SP passive subwoofer.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
LOUDSPEAKERSystem type:
active subwoofer
COMPONENTSLow frequency:
2x8
''
woofer/2''v.c.
FEATURESBuilt-in amp LF/MF-HF:
700+700
W
/4Ohm
Built-in DSP:
fully adjustable
ACOUSTICAL SPECIFICATIONSSPL cont/peak:
116/122
dB
@1m (free field)
Frequency response:
40-200
Hz
(±3dB)
Coverage angle HxV:
°
omnidirectional
Suggest LPF range:
120/200
Hz
INPUT/OUTPUT CONNECTORSInput signal:
XLR IN/OUT
Output signal:
2 x 4 pole
Data:
RJ485 port
Power connection:
powerCON IN/OUT
CABINET CONSTRUCTIONCabinet material:
12
mm
plywood
Sospension system:
wall brackets (included)
PHYSICALDimensions (WxHxD):
500x246x235
mm
Weight:
14.5
kg
