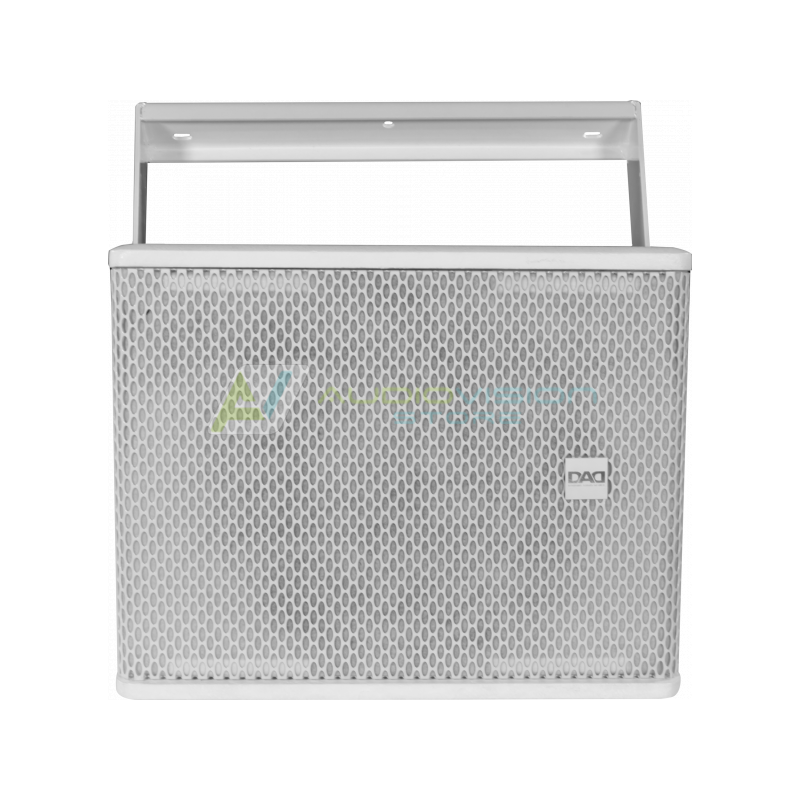

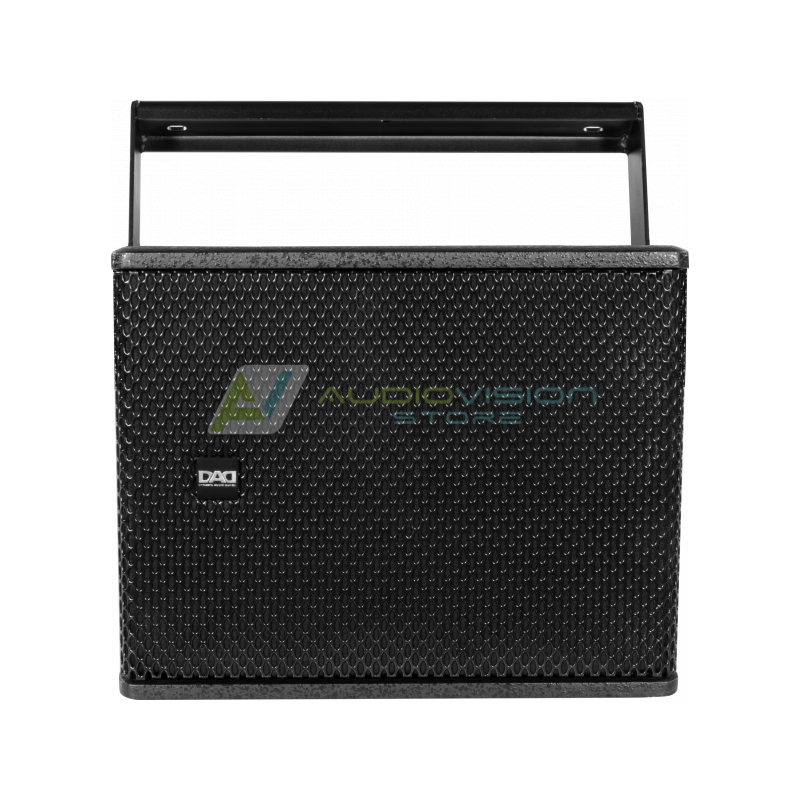

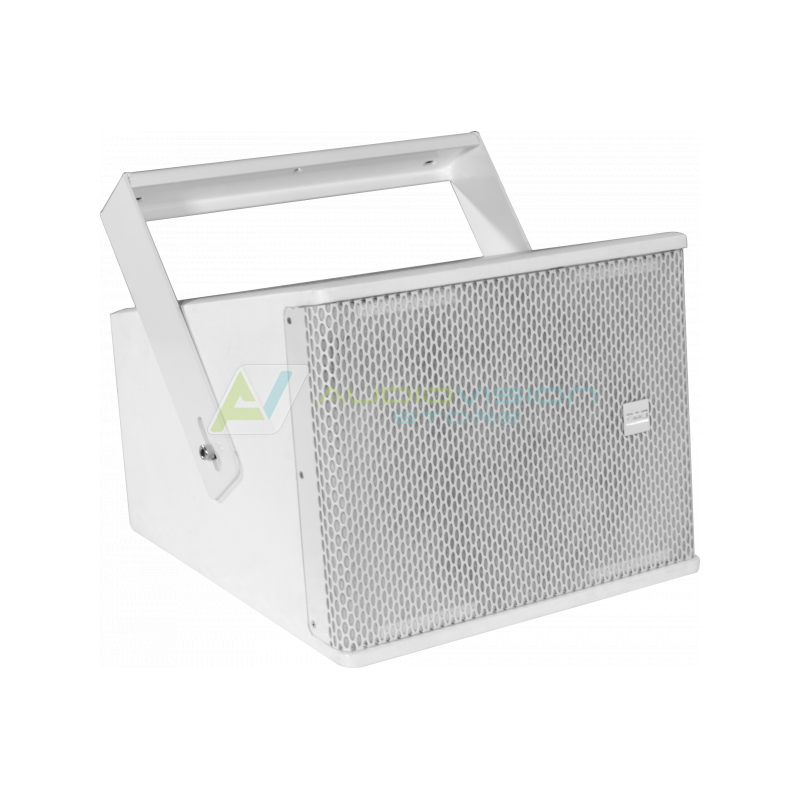

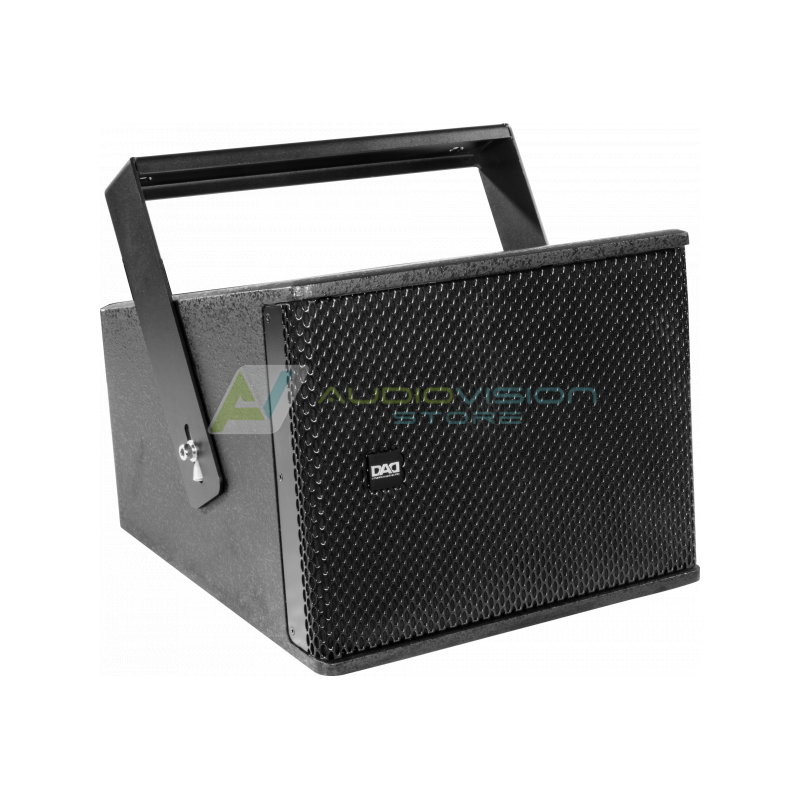

2-way passive loudspeaker, coaxial design, 300 W AES, 128dB SPL
Features:Low frequency: 12'' woofer/3'' v.c.
High frequency: 1'' driver / 1.7'' v.c.
Frequency response: 50-18000 Hz (±3dB)
ARK12MP full range speakers are suitable for medium and large installations or can be used as satellites in combination with the passive or active sub.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
Birch plywood enclosure.
COMPONENTSLow frequency:
12
''
woofer/3''v.c.
High frequency:
1
''
driver/1.7''v.c.
FEATURESAES/program power:
300/600
W
SPL max:
128
dB
@1m (free field)

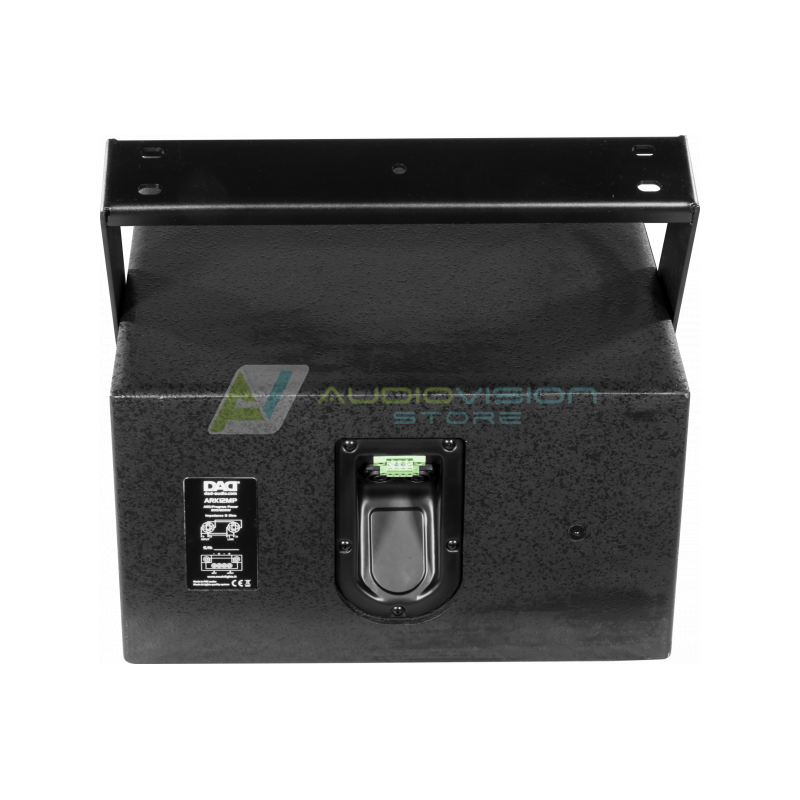

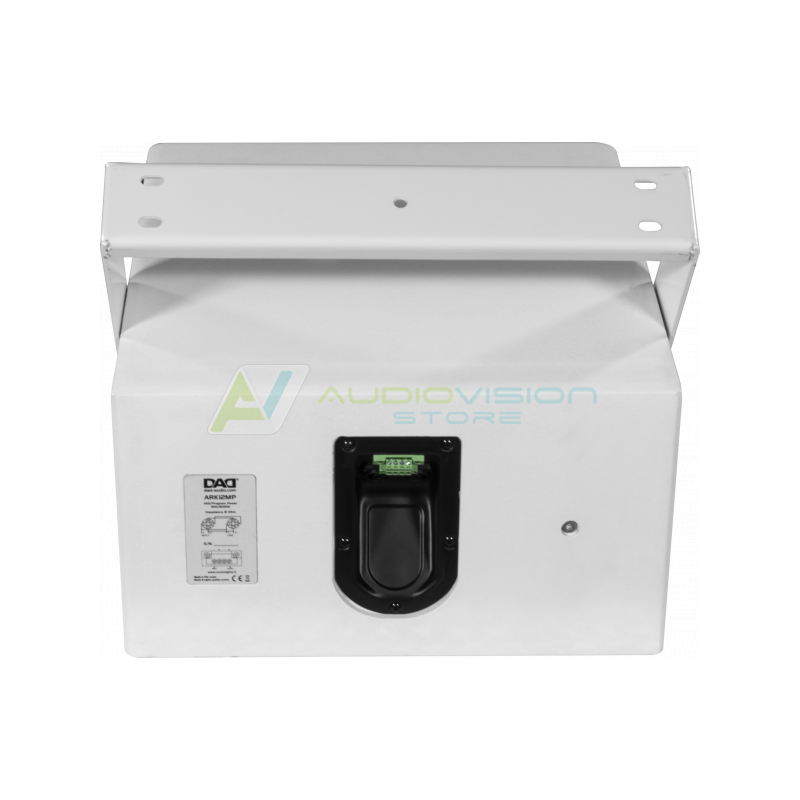

ACOUSTICAL SPECIFICATIONS INPUT/OUTPUT CONNECTORSInput signal:
Phoenix - NL4 IN/OUT
CABINET CONSTRUCTIONCabinet material:
15
mm
birchplywood
Sospension system:
wall brackets (included)
PHYSICALDimensions (WxHxD):
450x361x450
mm
Weight:
21.9
kg
