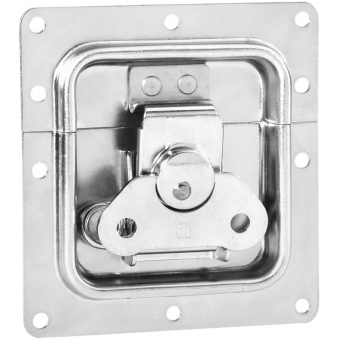

The closing mechanism of the butterfly is equipped with a counter pressure spring to be automatically guided out at its opening position of approx. 30º. If additional requirements arise, the closing hook can also be moved further out.
| Product type | Catches |
| Type | Butterfly Latches |
| Material | Steel |
| Surface | galvanized |
| Mounting hole diameter | 5.1 mm |
| Lockable | no |
| Dish type | non-cranked |
| Dish size | medium |
| Dish depth | 7 mm |
| Rivet protection design | no |
| With push-out spring | Yes |
| Push-flat function | no |
| Weight | 0,255 kg |
| Additional information | with protective edge |
