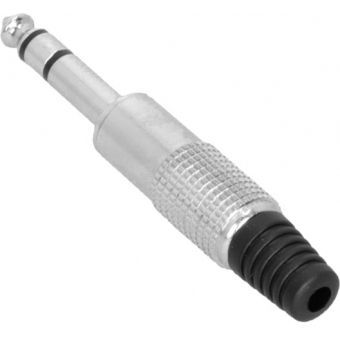

Our large selection of different plugs includes this 6.3 mm jack plug from our 4 Star series. The cable is connected to the plug by soldering and the metallic strain relief gives the whole structure the necessary stability at the end, also thanks to the heat shrink tubing.
Product type | Plugs and Connectors |
Type | Jack Connectors |
Poles | 3 |
Gender | male |
Cable diameter | 5 mm |
Contacts | nickel plated |
Connection type | solder contacts |
Color | silver |
Housing | Steel |
Strain relief | Metal |
Length | 80 mm |
Diameter | 13 mm |
Weight | 0,008 kg |
