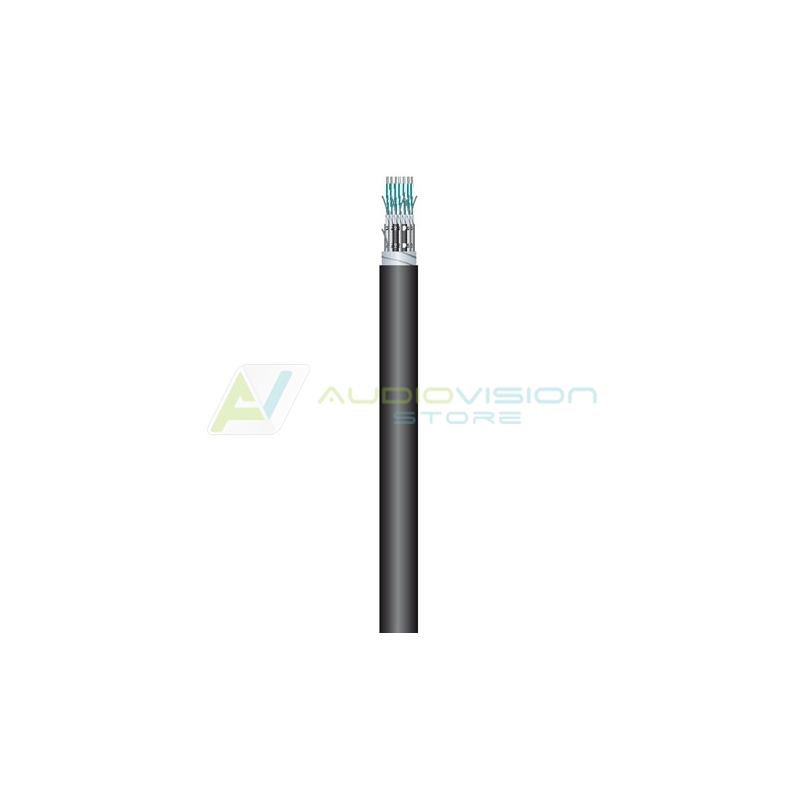

The Storm MCF offers PVC insulation in pairs, common in studiocores. All pairs are wear-resistant number coded as well as colour coding in multiples of eight. Each pair has a pre-twisted drain wire and additional AL/PT foil shielding for protection against corrosion and oxidisation. Conductors and drain wire are tin plated.
Product type | Bulk Cable |
Type | Multicore cable |
Color | Black |
Overall diameter | 17.9 mm |
Center conductor cross section | 0.22 mm² |
Center conductor material | Copper, tin-plated |
Center conductor construction | 7 x 0.2 mm |
Number of internal conductors | 24 |
Shield material | Aluminium foil |
Shield | Wound shielding |
Line resistance | <87 Ohm(s) |
Capacitance | 65 pF/m |
Jacket material | PVC |
Weight | 0,338 kg |
Additional information | Inner conductors with filler strand, insulated & shielded in pairs |
