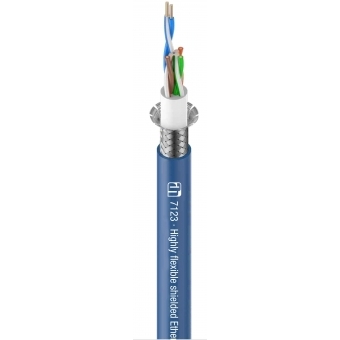

The AH 7123 Cat5e cable is constructed with a highly flexible, flame-retardant TPU jacket, braid shield and 4 twisted pairs of individually jacketed, finely stranded conductors. The rugged LSZH cable is EtherSound compatible up to 70 m.
| Product type | Bulk Cable |
| Type | Network Cable |
| Color | blue |
| Overall diameter | 6.4 +/- 0.2 mm |
| Center conductor cross section | 0.15 mm² |
| Center conductor construction | 19 x 0.1 mm |
| Number of internal conductors | 4 x 2° |
| Shield material | Tinned copper braided shielding with 128 x 0,10mm |
| Line resistance | <85 Ohm(s) |
| Capacitance | 60 pF/m |
| Jacket material | TPU |
| Weight | 0,05 kg |
| Additional information | Flame retardant, Halogen-free |
