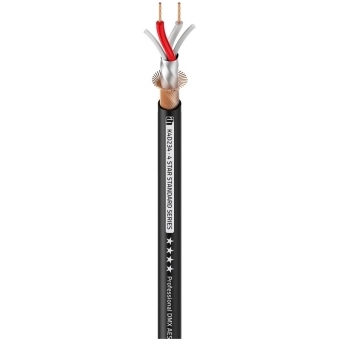

The 4 STAR D 234 is perfectly suited for transmission of DMX signals. Our classic with 2 x 0.34 mm² center conductor is also perfect for longer distances, thanks to its bigger cross-section. This highly flexible cable is easy to wind, and thanks to its larger diameter also very robust and therefore also well suited for hard road applications.
Product type | Bulk Cable |
Type | DMX & AES/EBU Cable |
Color | Black |
Overall diameter | 6.5 mm |
AWG | 22 |
Center conductor cross section | 0.34 mm² |
Center conductor material | OFC |
Center conductor construction | 7 x 0.25 mm |
Number of internal conductors | 2 |
Shield | Tin-plated copper braided shield |
Line surge impedance | 120 Ohm(s) |
Line resistance | 53 Ohm(s) |
Capacitance | <65 pF/m |
Temperature range | - 20 - 70 °C |
Weight | 0.05 kg |
