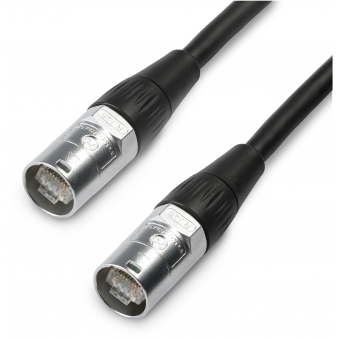

Nowadays, a fast network cable is a must for all events - whether on stage, in fixed installations or at home. For this purpose, Adamh Hall now offers the Cat.6a cable which, with its transmission frequency of 500 MHz, which is achieved by a special insulation of the opposing pairs of wires, has become the most common network cable. The high-quality 4 STAR CAT6 cable from our 4 Star series comes as a four twisted pair version and is our standard cable for indoor and outdoor network applications. It can therefore be used in all event-tech relevant areas. Cat.6a is downward compatible and can therefore also be used for Cat.6 and Cat.5e transmissions. Our professional Cat.6a network cables meet all the requirements of the event tech industry and are characterised by robustness for outdoor use or durability for the studio.
- Professional network cable
- RJ45 connector
- Removable Yongsheng protective housing
- Super robust cable thanks to special aluminium foil and PVC jacket
- Four individually shielded twisted pairs of wires
- PoE (Power of Ethernet) capable up to 70m
General
| Cable length | 70 m |
| Cable sheath | PVC |
| Cable diameter | 8 mm |
| Cable colour | Black |
Line
| CAT standard | Cat.6a |
| Connector type plug 1 | RJ-45 with housing |
| Model name plug 1 | Adam Hall K4CCAT6YS |
| Connector type plug 2 | RJ-45 with housing |
| Model name plug 2 | Adam Hall K4CCAT6YS |
| Conductor material | Oxygen-free copper (OFC) |
| Conductor diameter | 4 x 2 x 0,22 mm² |
| AWG | 24 |
| Shield | Braided copper shielding |
Environmental
| Temperature range | -20 - 60 °C |
