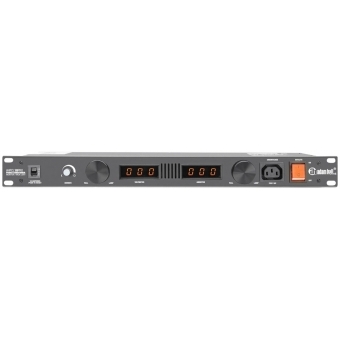

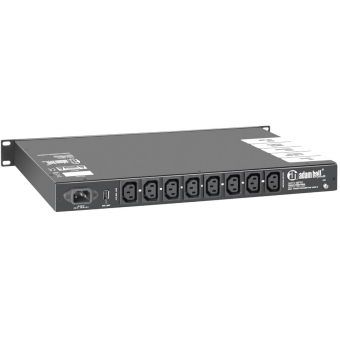

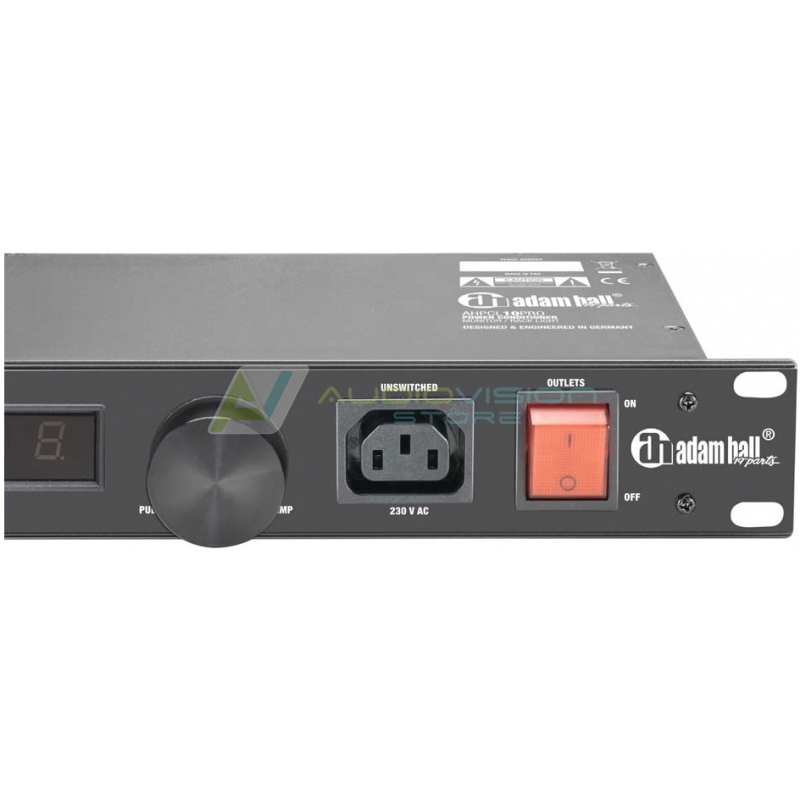

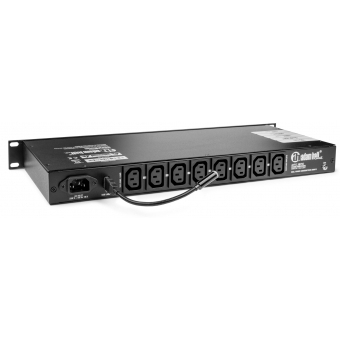

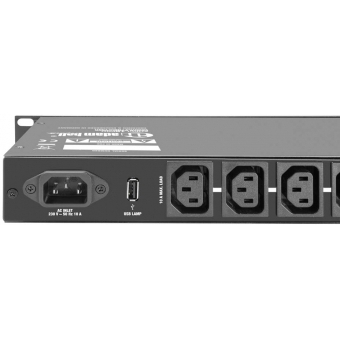

de la in 60 de rate fixe.In addition to providing a central power supply to racks and installations, the 19" AH Power Conditioner with only 1 ns response time offers effective protection against power surges and spikes. High frequency filters ensure a high interference immunity and prevent interference with connected devices. The 8 female power sockets on the back panel are activated with a large rocker switch with integrated status LED; on the front panel, the AH Power Conditioner also has an unswitched power socket and an easily resettable 10 A automatic circuit breaker. The sturdy construction and the rugged 1U steel housing provide you with a reliable and long-lasting operation in mobile and stationary applications.

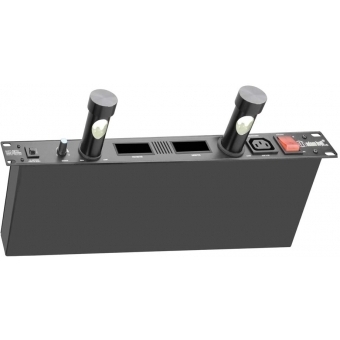

The AH PCL 10 PRO has two rack lights, a gooseneck lamp as well as a voltmeter and ammeter with individual, easy-to-read display for monitoring the voltage values and power consumption.

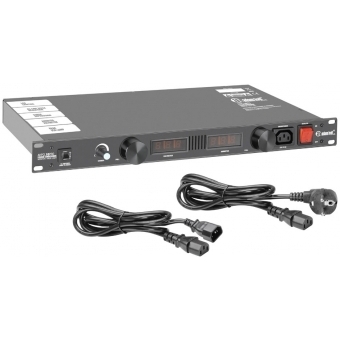

All AH power conditioners are supplied with four IEC connection cables.
| Product type | 19" rack mains socket strips |
| Type | 19" / 1 U |
| Number of outlets (IEC C14) | 9 |
| Input voltage | 230 V |
| Nominal Impedance | max 10 A |
| Protection Against Impulse Voltage | neutral conductor to earth, outer conductor to neutral, outer conductors to protection light |
| Response Time | 1 ns |
| Max. Surge Current | 6000A (8x20 µs pulse) |
| Max. Surge Energy | 70 joules per contact |
| Noise Cancelling | <20 dB, 1.5 MHz-200 MHz |
| Mains connector | IEC mains cord |
| Fuse | 10 A |
| Width | 482 mm |
| Height | 44.5 mm |
| Depth | 190 mm |
| Weight | 3,18 kg |
| Features | incl. telescopic rack lights and multimeter, including 4 power cords |
