These power distributors are cost-optimised powerhouses. Designed for everyday stage use, they provide a basic supply of conventional electricity requirements. The components have been selected based upon their fulfilment of the relevant safety requirements and a favourable price/performance ratio.

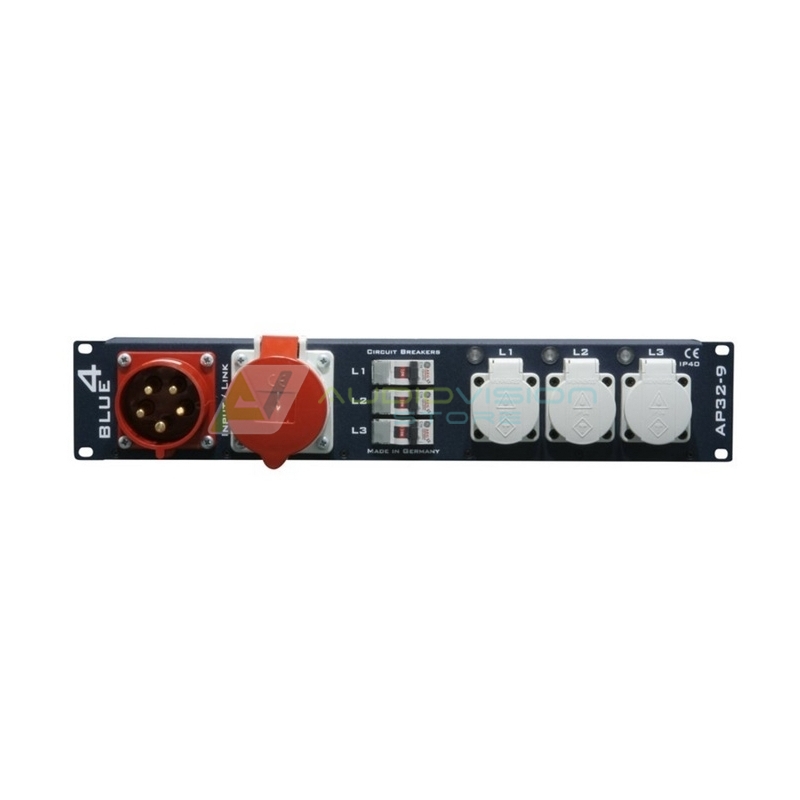

| Product type | 19" rack mains socket strips |
| Type | 19" / 2 U |
| Number of outlets (Earthing contact / IEC 7/4) | 9 (3 x front, 3 x 2 rear) |

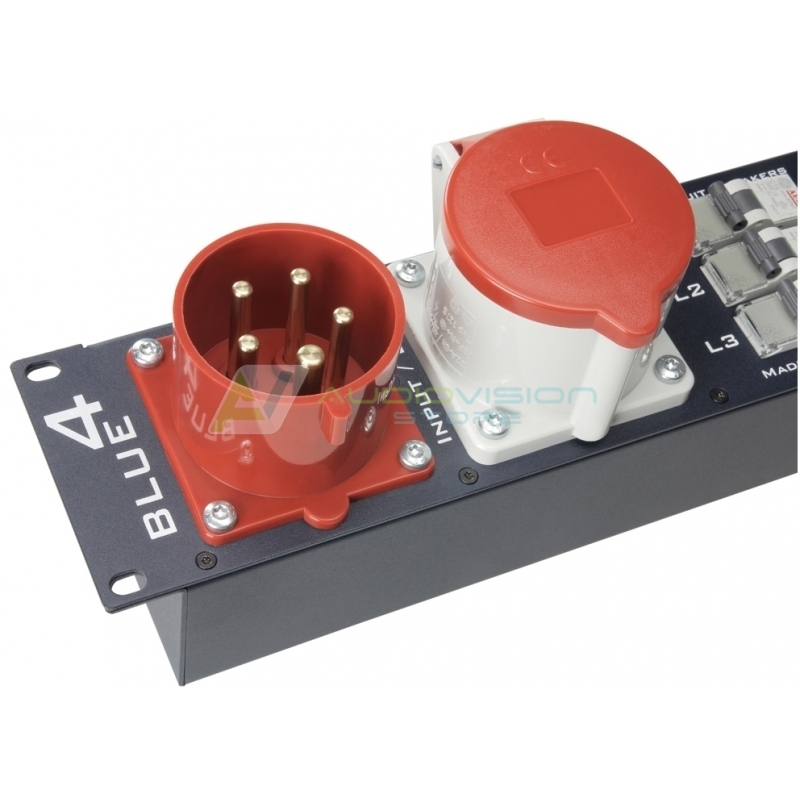

| Power input | 32 A CEE 5-pole panel socket, red |
| Output parallel to input | 32 A CEE 5-pole panel plug, red |
| Operating voltage | 400 V |
| Max. current | 3 x 16 A |
| Fuse | 3 x C16 circuit breaker (C tripping characteristic : for higher switch-on power) |
| Cabinet material | metal |
| Color | blue |
| Width | 485 mm |
| Height | 88 mm |
| Depth | 70 mm |
| Other features | indicator lamp pro phase |
| Weight | 3,06 kg |
