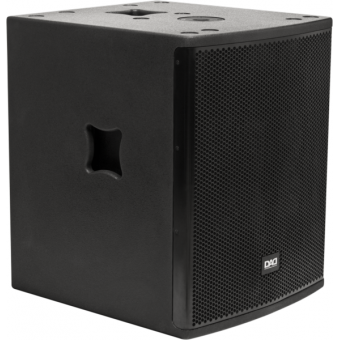

Active subwoofer, D-class amplifier, 1500 W, 134db SPL
Features:Low frequency: 18'' woofer/4''v.c.
Frequency response: 30-150 Hz (±3dB)
Subwoofer for reinforcement of low frequencies in live and recorded performance
Installed into theatres and congress halls owing to excellent acoustic performance
Birch plywood enclosure
DSP with 4 presets (punch-extended low-coupling-infra) for selection of optimal frequency response
LOUDSPEAKERSystem type:
active subwoofer
COMPONENTSLow frequency:
18
''
woofer/4''v.c.
FEATURESBuilt-in amp:
1500
W
SPL max:
134
dB
@1m (free field)
ACOUSTICAL SPECIFICATIONSSPL cont/peak:
128/134
dB
@1m (free field)
Frequency response:
30-150
Hz
(±3dB)
Coverage angle HxV:
°
omnidirectional
ELECTRONICSAmplifier:
digital
Input sensitivity:
4 dBu (1,228Vrms) adjustable
Protection:
RMS limiter, fast limiter, temp.
User controls:
punch-extented low-coupling-infra
Processor:
DSP
Operating voltage/frequency:
220 V ±10%, 50 Hz
INPUT/OUTPUT CONNECTORSInput signal:
XLR IN/OUT
Power connection:
powerCON IN/OUT
CABINET CONSTRUCTIONCabinet material:
24
mm
birchplywood
Sospension system:
35 mm mounting pole
Handles:
2 on side

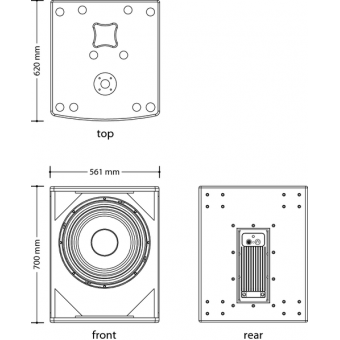

PHYSICALDimensions (WxHxD):
561x710x620
mm
Weight:
51
kg
