Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems' noise floor is exceptionally low.

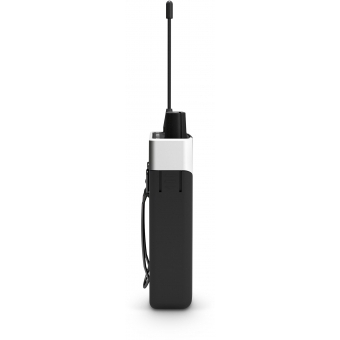

Drawing little current only, the U500® IEM Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure interference-free operation at all times.
| Product type | In-ear Monitoring Accessories |
| Type | Receivers |
| Transmission frequency range | 823 - 832 MHz |
| Transmission frequency range | 863 - 865 MHz |
| Channels | 96 (8 groups of 12 channels) |
| Transmission method | FM, mono/stereo |
| Frequency response | 40 - 16000 |
| Audio output | 3.5 mm TRS |
| Max. audio output level | 33 mW @ 16 Ohm mW |
| Max. audio output level | 80 mW @ 33 Ohm mW |
| Controls | Down |
| Controls | On / Off |
| Controls | Up |
| Controls | volume |
| Indicators | Multifunctional OLED-Display |
| Indicators | RF (LED) |
| Operating voltage | 2 x 1.5 V AA |
| Operating time | < 10 hours |
| Width | 64 mm |
| Height | 100 mm |
| Depth | 24 mm |
| Weight | 0,095 kg |
| Accessories (included) | 2 x AA batteries |
| Accessories (included) | Antenna |
| Features | battery status LED |
