The new LD Systems MEI 1000 G2 B 5 is a In-Ear Monitoring-System with 96 UHF channels that delivers outstanding sound quality with a large dynamic range and outstanding crosstalk behaviour in the 584 - 608 Mhz frequency band.
Switchable mono, stereo, and focus monitoring modes as well as adjustable EQ and limiter functions permit natural sound reproduction for any application, with a frequency response of 60 Hz – 16 kHz, a high S/N ratio, and low THD. The LD MEI 1000 G2 permits simultaneous operation of up to 5 systems.

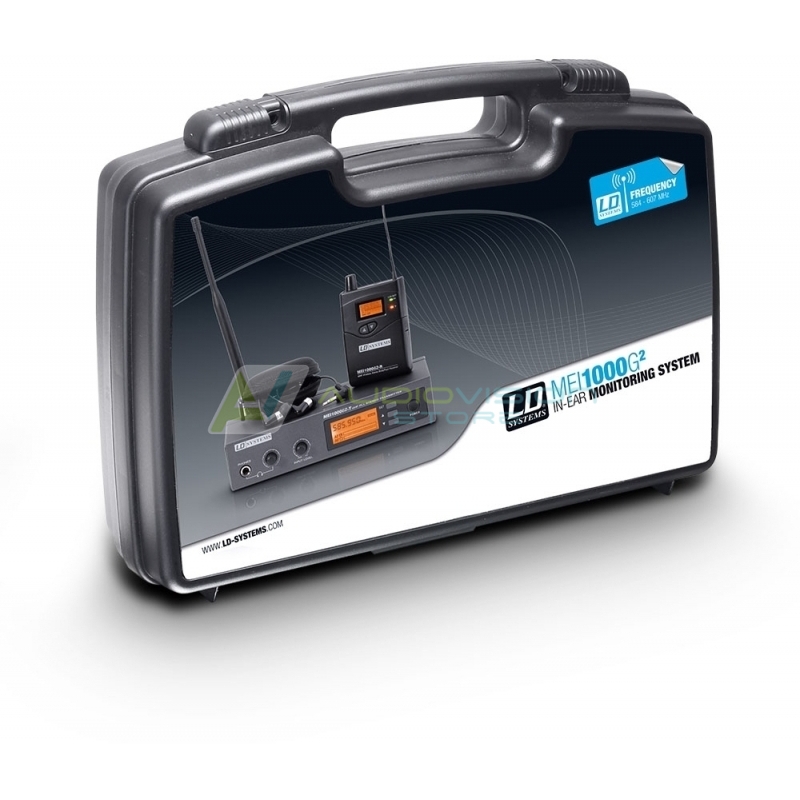

The earphones are very comfortable to wear, and the multifunctional display on the receiver shows all relevant system information. With high quality batteries, it is possible to attain operating times of 12 hours and more. A 19" rackmount kit and a rugged ABS plastic carrying case complete the MEI 1000 G2 package.
| Product type | In-ear Monitoring |
| Transmission frequency range | 584 - 607 MHz |
| Product type | In-ear Monitoring Accessories |
| Type | Receivers |
| Transmission frequency range | 584 - 608 MHz |
| Channels | 2 x 96 (8 groups of 12 channels) |
| Transmission method | FM, stereo |
| Frequency response | 60 - 16000 Hz |
| Signal-to-noise ratio | 80 dB |
| Total Harmonic Distortion (THD) | < 1 % |
| Audio output | 3.5 mm TRS |
| Max. audio output level | 100 mW |
| Controls | Down, Escape, Set, Up, volume |
| Indicators | LC display, low battery, Power |
| Operating voltage | 2 x 1.5 V AA |
| Operating time | > 12 hrs., battery-dependent |
| Width | 65 mm |
| Height | 90 mm |
| Depth | 24 mm |
| Weight | 0,1 kg |
| Features | incl. batteries |
| Product type | In-ear Monitoring Accessories |
| Type | Transmitters |
| Transmission frequency range | 584 - 607 MHz |
| Channels | 96 (8 groups of 12 channels) |
| Transmission method | FM, stereo |
| Rated HF output power | 10 mW |
| Frequency response | 60 - 16000 Hz |
| Signal-to-noise ratio | 85 dB |
| Inputs | 2 |
| Input connectors | 6.3 mm jack, XLR |
| Input impedance (kOhms) | 14 kOhm |
| Antenna connector | BNC |
| Controls | input level, pad, Power, Set, Up, volume headphone |
| Indicators | LC display |
| Operating voltage | 12 - 18 V DC |
| Width | 200 mm |
| Height | 44 mm |
| Depth | 96 mm |
| Weight | 1,116 kg |
| Accessories (included) | Antenna, Power supply |
