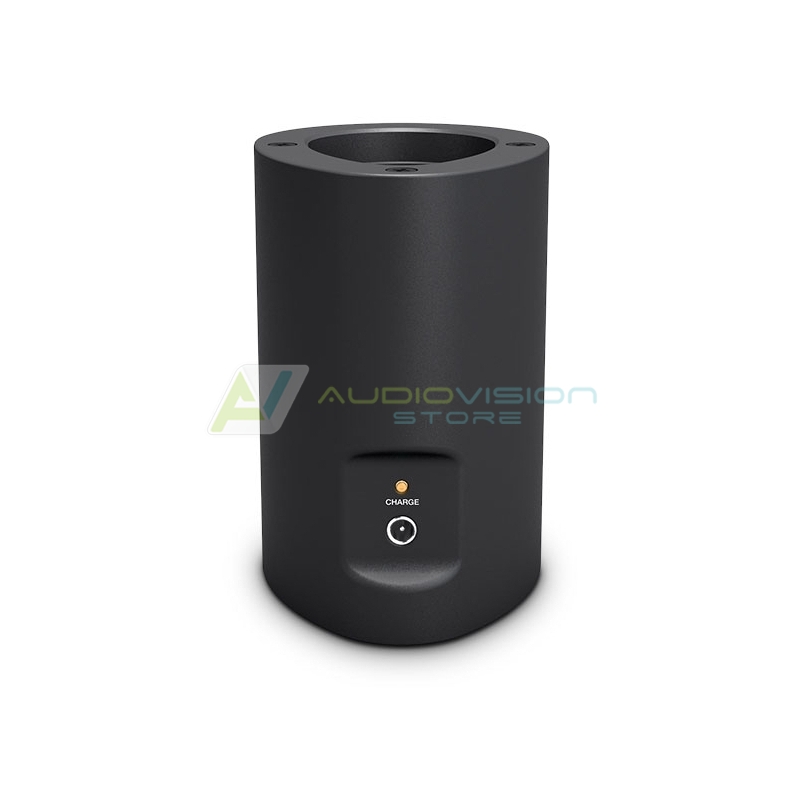

This charging dock is a flexible alternative to the MAUI 5 GO’s built-in smart charger. Featuring LD Systems’ Quick-Swap technology, it lets you recharge replacement battery elements while operating the MAUI 5 GO to provide virtually unlimited battery power. Charging takes only 2 hours to 80% and 3 hours to full capacity. The dock comes with a 100V - 240V multi-voltage power supply with overload, over-voltage and over-temperature protection. MAUI 5 GO replacement batteries are available as accessories.
| Product type | PA Power Amplifier Accessories |
| Type | Loading Dock with Power Cable |
| Connections Loading Dock | Low-voltage socket, multipin |
| Operating Voltage Loading Dock | 20 - 40 V DC |
| Protection Features Loading Dock | current limiter |
| Dimensions (W x H x D) Loading Dock | 81 mm x 125 mm x 106 mm |
| Weight Loading Dock | 0.31 kg |
| Input Voltage Power Cable | 100 V AC - 240 V AC, 50 - 60 Hz |
| Input Connector Power Cable | ICE Connector male |
| Rated Output Voltage Power Cable | 24 V |
| Output Current Power Cable | 5 A |
| Protection Features Power Cable | over-current, power supply overload, short circuit, thermal overload |
| Indicators | power LED |
| Dimensions (L x W x H) Power Cable | 167 mm x 67 mm x 35 mm |
| Weight Power Cable | 0.62 kg |
