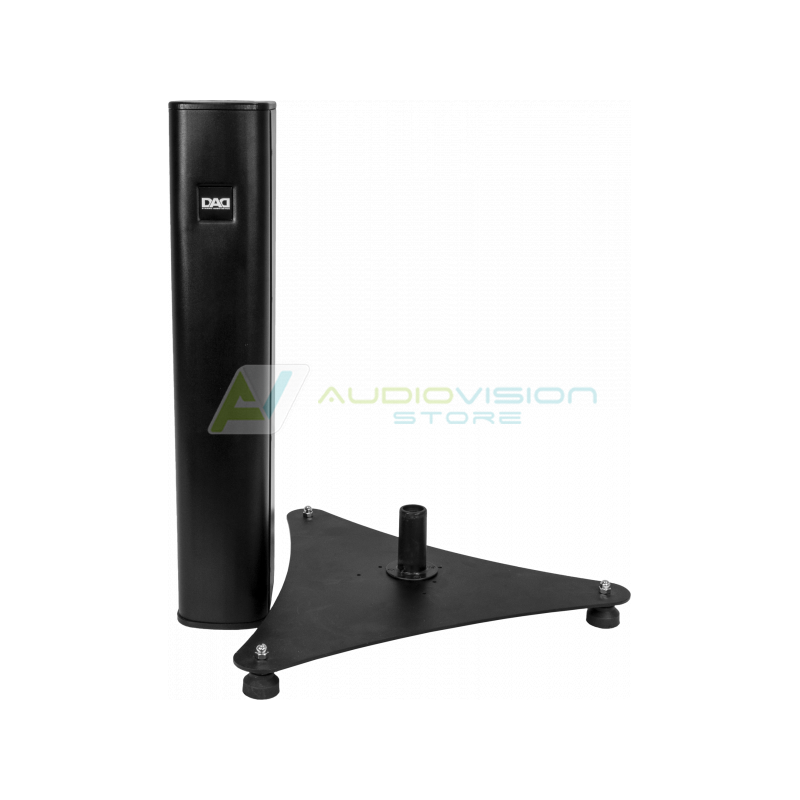

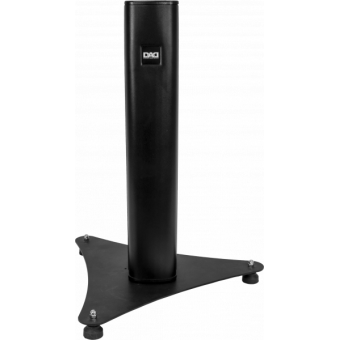

700W amplified base for ARK803AP column loudspeakers
Features:DSP with 4 presets (1 unit, 2 units,120 Hz HPF, 180 Hz HPF) for selection of optimal frequency response
AMPLIFIERChannels:
1
Circuit class:
digital
OUTPUTSingle channel power:
700
W
8 Ohm
AUDIO SPECIFICATIONSFrequency responce:
20 - 20000
Hz @ 8 Ohm
(±0.5 dB)
THD+N:
<0.005
%
Slew rate:
>30
V/μs @ 8Ω
Damping factor:
>1000
Input impedance:
10
kΩ
Signal/Noise rate:
>100
dB
PROTECTIONSOutput:
Soft-start, short circuit, DC, overheat
Input:
Clip/limit, progressive volume
FUNCTIONSInput sensitivity:
4 dBu (1,228Vrms) adjustable
User controls:
1 unit, 2 units, 120Hz HPF, 180Hz HPF
INPUT/OUTPUT CONNECTORSInput signal:
XLR in/out
Output signal:
jack 6.35 mm
Power connection:
PowerCON IN/OUT
PHYSICALDimensions (WxHxD):
500x650x500
mm
Weight:
8.8
kg
