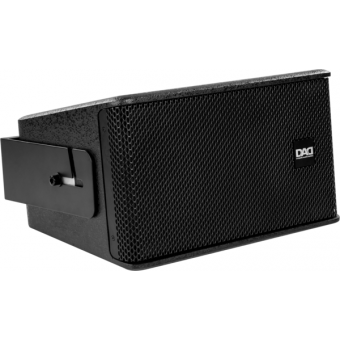

2-way passive loudspeaker, 120 W AES, 116dB SPL
Features:Low frequency: 6'' woofer/0.75'' v.c.
High frequency: 1'' driver / 1.5'' v.c.
Frequency response: 75-18000 Hz (±3dB)
ARK106 full range speakers are suitable for small installations or can be used as satellites in combination with the passive or active sub.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
Birch plywood enclosure.
LOUDSPEAKERSystem type:
passive 2 way
COMPONENTSLow frequency:
6
''
woofer/1.5''v.c.
High frequency:
1
''
driver/1''v.c.
FEATURESAES/program power:
120/240
W
SPL max:
116
dB
@1m (free field)
ACOUSTICAL SPECIFICATIONS CABINET CONSTRUCTIONCabinet material:
12
mm
plywood
Sospension system:
wall brackets (included)
Angle:
7.5
°
trapezoidal taper
PHYSICALDimensions (WxHxD):
201x340x233
mm
Weight:
6.5
kg
