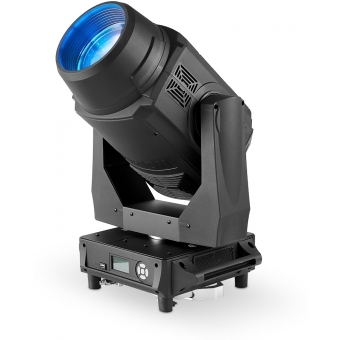

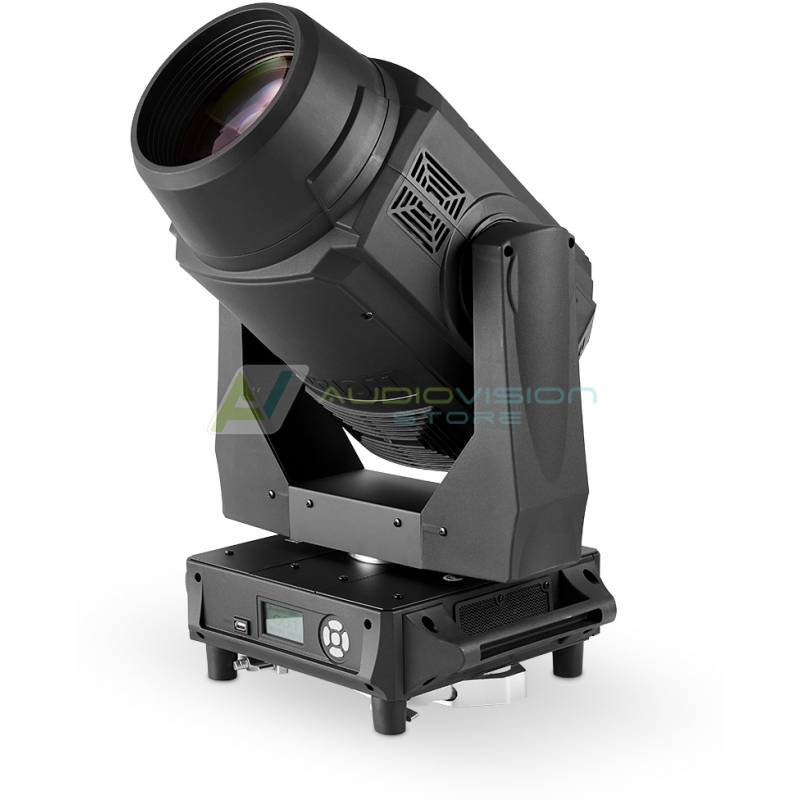

The CLF Orion is a multifunctional and powerful hybrid. This all-in-one workhorse features a wide lens which allows big mid-air effects. The 471W Osram light source provides a very bright and punchy beam, which can be zoomed from 2° to 42°. Colors can be mixed smoothly by using the CMY wheels, there is also a fixed color wheel available.
Among the effects are a fixed and rotating gobo wheel, both equipped with autofocus when zooming. Next to that, two prism wheels and an animation wheel are also part of the feature package. Two linear frosts are combinable for maximum flexibility. Hotspot control enables smooth projection, and a high CRI filter is available for television and theatre use.
| Power | |
| Input voltage | 100 – 240 VAC, 50/60HZ |
| Standby power | 498W |
| Total power consumption | 630W |
| Typical current | 2.7A |
| COS φ | 0.972 |
| Power plug type | Seetronic PowerCON TRUE |
| … | |
| Source | |
| Lamp | Osram Sirius HRI 471W SN |
| Expected lifetime | 1500 hours |
| CRI level | 80 (standard), 90+ (high) |
| … | |
| Optical | |
| Beam angle | Beam 2 – 21° |
| Spot 3 – 42° | |
| … | |
| Photometric | |
| Output 2° @10M | 422000 LUX |
| Output 42° @10M | 765 LUX |
| … | |
| Effects | |
| Color mixing | CMY, fixed color wheel |
| Gobo | Rotating wheel 9 + open |
| Fixed wheel 13 + open | |
| Prism | Wheel 1: linear 6 facet, circular 4-facet, circular 8-facet (11°) |
| Wheel 2: circular 8-facet (22°) | |
| Animation | Continuous animation effect wheel |
| Zoom | 2° – 42° |
| Frost | 1° and 5° level frosts, combinable |
| Dimming | 16 Bit |
| Shutter | 0.5 – 9 times / second, random |
| Pan | 540° |
| Tilt | 250° |
| … | |
| Hardware | |
| Interface | LCD display |
| Software upload | USB |
| … | |
| Heat management | |
| Cooling type | Forced ventilation & axial fans |
| Max. ambient temp. | Ta max=40°C |
| Min. ambient temp. | Ta min=-20°C |
| … | |
| Control | |
| Control protocol | DMX512 |
| DMX channels | 33 |
| RDM | Yes |
| DMX input connection | 3-PIN and 5-PIN |
| … | |
| Installation | |
| IP rating | IP20 |
| Orientation | Any |
| … | |
| Housing | |
| Safety attachement point | Bottom |
| Lock | Tilt lock |
| … | |
| Physical | |
| Net product weight | 29KG |
| Length | 401mm |
| Width | 300mm |
| Height | 646mm |
| … | |
| Accessories | |
| Included items | Manual, Power cable, |
| DMX cable & safety cable | |
| … | |
| Approvals | |
| Approved certifications | CE and RoHS |
| … | |
| Information | |
| Article number | 160025 |
| EAN code | 8719189163179 |
