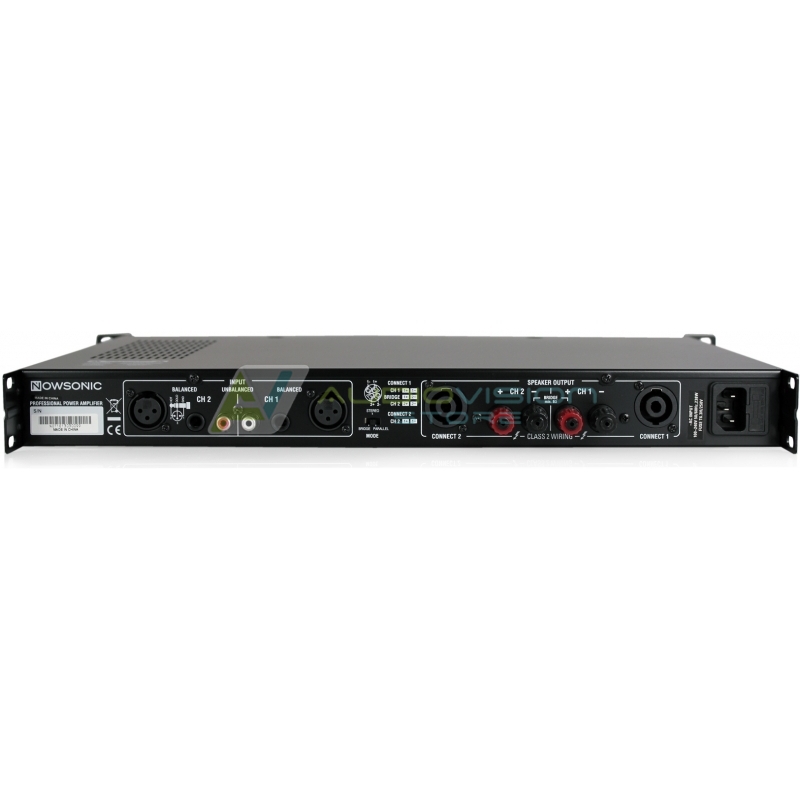

The Nowsonic Titan 520 amplifier define the standard for portable PA systems with unmatched performance, technology, affordability and enormously light weight. This amplifier is designed to provide a big impact in sound reproduction and to produce the best and highest quality audio at an affordable price.
Features:
- Compact size, high performance and lightweight with Class-D technology
- Integrated limiters provide maximum output while protecting your speakers
- Various (XLR, 1/4” jack, RCA) inputs ensure compatibility with any source
- 5-Way Binding Post, 4-Pole Speakon outputs ensure compatibility with any speaker connection
- Mode selection with Stereo, Parallel and Bridge
- Advanced protection includes abnormal voltage, over current and high temperature
- Desktop and 19-inches rack mountable type
- Low distortion and low noise level
- Ideal for commercial and industrial use
- Rated Output Power:
- Stereo Output @ 4 ohms, THD 1.0%: 2x 250 Watts
- Bridge Mono Output @ 8 ohms, THD 1.0%: 500 Watts
- Input Sensitivity for full output at maximum gain:
- Balanced XLR input(Impedance 20kohms): +4dBu ± 2dB
- Balanced 1/4 Inch Input(Impedance 20kohms): +4dBu ± 2dB
- Unbalanced RCA Input(Impedance 10kohms): +4dBu ± 2dB
- Frequency Response @ 4 ohms 1watt, 20Hz ~20kHz: +0.5/-1dB
- Signal to Noise Ratio at rated power output: 90dB
- Crosstalk at all control maximum: -65dB at 1kHz
- THD @ 1kHz 1/2 rated power: Less than 0.1%
- Operating Temperature/Humidity @ non-condensing: 0°~40°C at 95% humidity
- Indicators:
- PROTECT: DC, Thermal, Overload
- CLIP: 0 dBr
- SIGNAL: -26 dBr
- POWER SOURCE: AC100V~AC240V 50Hz-60Hz
- Cooling: Convection Cooled
- Dimensions (W × H × D): 482 mm x 44 mm x 330 mm
- Net Weight: 4,7kg
In the box:
- Titan 520
- Power cable
- User manual
Applications:
