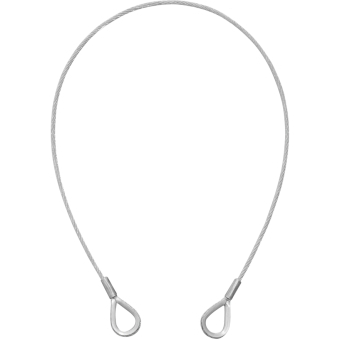

EUROLITE Steel Rope 600x3mm silver with Thimbles

Eurolite
cod produs: 5801048F
La comanda
15.86 Lei 14.27 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

EUROLITE Lifting ropes, safety bonds
The EUROLITE lifting ropes, safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The lifting ropes, safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The lifting ropes, safety bonds are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can install and secure loads above persons with these lifting ropes, safety bonds in all areas where the BGV C1 is required.
Use as attachment gear
These ropes are stamped with a WLL describing the maximum load when used for general lifting purposes. For all areas where the BGV C1 is required, the correct lifting rope must be selected only by table 2 of BGI 810-3:2007-03. According to this table, the maximum load of this rope is 40 kg (single-stranded).
Use as safety bond
The correct safety bond must be selected only by table 9 of BGI 810-3:2007-03. According to this table, the maximum load of this safety bond is 5 kg.

Lifting rope, safety bond, safety

  • Round strand rope 6 x 19 with fibre core
  • With two thimbles
  • Suitable for installing and securing loads above persons
  • 3 x 600 mm
  • WLL 100 kg
  • Test report according to DIN EN 10204 as download
Maximum load WLL (5-fold):100 kg
Maximum load BGV C1 (12-fold):40 kg
Maximum load (safety):5 kg
Temperature range:-40° C to +100° C
Rope length:0.6 m
Rope diameter:3.00 mm
Rope type:Round strand rope
Rope construction:6 x 19 FC
Standard:DIN EN 12385-4:2008-06, DIN 56927:2009-03
Nominal tensile strength:1770 N/mm²
Strength classification:1960
Wire surface:Zinc-plated
Mass:0.359 kg/m
