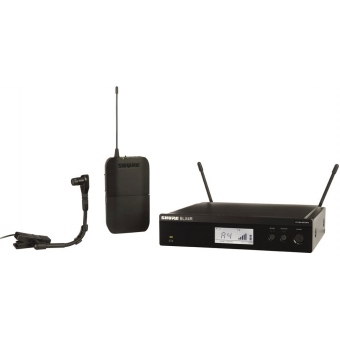

Sistem Wireless SHURE (Rack-Mount) - Instrument BLX14R/B98H/Clip-On

Shure
cod produs: BLX14RE/B98
La comanda
2370.81 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

The Beta 98H/C condenser microphone is a versatile solution for brass or percussion instruments. It offers a flexible integrated gooseneck with clip-on clamp for a secure fit and precise positioning. It combines  simple setup and an intuitive interface in a rack-mount receiver.Analog transmission.

What is the Beta 98H/C best suited to?

It’s a premium instrument microphone with a flexible gooseneck and clip on clamp making it ideal for use with brass, percussion and woodwind instruments, either on stage or in the studio.

What receiver comes with the Beta Wireless Rack-mount Instrument System?

The Beta Wireless Rack-mount Instrument System comes with the Analog Wireless Rack-mount Receiver BLX4R that provides improved linearity and frequency response.

The receiver BLX4R is ready to perform right out of the box and is the clearest choice for performers who wish to unplug from the wire.

Is a rack mount kit included

Yes, the box contains everything you need for rack mounting.

How many musicians can use this system simultaneously?

Up to 12 compatible channels per group with group and channel scan for easy set-up.

Is the setup really that easy?

Yes, with one button you can start the group and channel scan, which gives you the best open frequency. Adjust the transmitter to the same channel and you’re ready to go.

What does “Linearity” mean?

The proportion between input signal of the transmitter and output signal of the receiver is always constant.

How does the BLX receiver perform compared to wired?

The frequency response of the wireless microphone is almost identical to the frequency response of a wired mic. Also the dynamic performance is almost the same.

Beta 98H/C Clip-on Gooseneck Microphone

  • The Beta 98 H/C feature transformerless preamplifier circuitry which improves linearity across the full frequency range.
  • The pickup pattern provides high gain-before-feedback and excellent rejection of unwanted noise.
  • Its high maximum sound pressure level (SPL) enables it to handle the extreme demands of brass, woodwind and percussion instruments.
  • The Beta 98H/C features a 3 m (10 ft.) high-flex cable with attached preamplifier (XLR connection)
  • Tailored frequency for open, natural sound reproduction
  • Compact, lightweight construction provides a low degree of visibility
  • Gooseneck, ratcheting swivel joint and gooseneck angle brace allow for optimum placement and fixed positioning

BLX1 Bodypack Transmitter

  • Power and battery status LED
  • Adjustable gain control
  • Quick and easy frequency matching
  • AA batteries (included) provide up to 14 hours of continuous use
  • 100 m (300 ft.) operating range (line of sight)

Receiver BLX4R

  • One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
  • Up to 12 compatible systems per frequency band (region-dependent)
  • XLR and ¼” output connectors
  • Two-color audio status indicator LED
    • Green:  Normal audio levels
    • Red:  Excessive audio levels (overload/clipping)
  • Adjustable output level
  • Removable antennas for quick antenna distribution
  • LC Display with detailed RF and audio metering
  • Rack mount kit included

Furnished Accessories

  • RACK MOUNT BRACKET, part number: 53A8611
  • LONG RACK MOUNT BRACKET, part number: 53A8612
  • LINK BRACKET, part number: 53B8443
  • HARDWARE KIT, part number: 90AZ8100
  • Swivel adater, part number: 90F4046
  • Thread adapter, part number: 31B1856
  • 2x, ANTENNA/BNC,1/4 WAVE, part number: 95A8699
  • 2x, ADAPTER,BULKHEAD,BNC, part number: 95A8994
  • BAG  VINYL, ZIPPERED, part number: 95B2313
  • 2x, CABLE,BNC,22 in., part number: 95K2035
  • Power supply PS23

System technical specifications

  • Compatible systems per frequency band (up to): 12
  • Selectable frequencies: Up to 150
  • Auto Setup Features: QuickScan : Finds group with most compatible frequencies and sets to best frequency
  • Audio Reference Companding: No
  • Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable
  • Antenna Options: No
  • Receiver Network Ability: No
  • PC Control: No
  • Rack Hardware: URT2 (not included), Rack mount brackets (only with rackable/BLX-R Sets)
  • Case: Included Only with BLX4 Sets
  • Transmitter Display: LED
  • Receiver Display: BLX4, BLX88: LED, BLX4R: High-resolution LCD screen
  • Battery, Endurance: 2AA, up to 14h
  • Environment: Demanding acoustic environments

Further Technical Specs

  • Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)
  • Available Frequencies: Between 524–865 MHz (available frequencies depend on applicable regulations in country where system used)
  • Audio Range: 50–15,000 Hz (dependent on microphone type)
  • Transmitter RF Output Power: 10 mW, typical (varies by region)
  • Audio Output Connector: XLR and 1/4" (6.3 mm)  unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
  • Battery Life: Up to 14 hours
  • Dynamic Range: 100 dB A-weighted
  • System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
  • Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
  • Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
  • BLX88: 12–18 V DC at 320 mA, supplied by external power supply

Component Specifications:

BLX4R Receiver

  • Output Impedance:
  • - XLR connector: 200 O
  • - 6.35 mm (1/4") connector: 50 O
  • Audio Output Level, Ref. ±33 kHz deviation with 1 kHz tone:
  • - XLR connector: –20.5 dBV (into 100 kO load)
  • - 6.35 mm (1/4") connector: –13 dBV (into 100 kO load)
  • RF Sensitivity: -105 dBm for 12 dB SINAD, typical
  • Image Rejection: >50 dB, typical
  • Dimensions: 50 mm X 198 mm X 163 mm H x W x D
  • Weight, without antennas: 998 g
  • Housing: Molded ABS, steel
  • Power Requirements: 12–15 V DC @ 260 mA, supplied by external power supply (tip positive)

BLX1 Bodypack Transmitter

  • Audio Input Level:
    • - gain max: -16 dBV maximum
    • - gain min (0 dB): +10 dBV maximum
  • Gain Adjustment Range: 26 dB
  • Input Impedance: 1 MΩ
  • RF Transmitter Output: 10 mW, typical, varies by region
  • Dimensions: 110 mm x 64 mm x 21 mm (H x W x D)
  • Weight: 75 g, without batteries
  • Housing: Molded ABS
  • Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
  • Battery Life: up to 14 hours (alkaline)

Specificatiile Produsului

  • Capsula Microfon Condenser
  • Componente Sisteme Wireless Transmitator, Lavaliera, Receptor
  • Microfoane dupa aplicatie Instrument
  • Sisteme Wireless Instrument
  • Tip Sistem Wireles Instrument
  • Tipuri microfoane Sisteme microfon wireless
