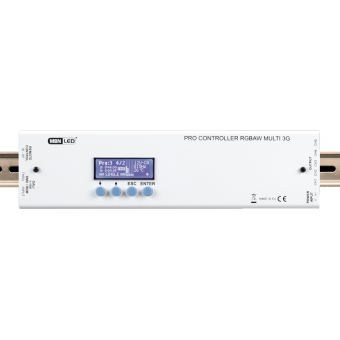

Pro Controller RGBAW Multi 3G

Proled
cod produs: L513513GS
La comanda
1363.78 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

The MBNLED PRO CONTROLLER RGBAW MULTI together with a switching power supply are used as power supply for all PROLED RGB products. With the MBNLED PRO CONTROLLER RGBAW MULTI fantastic colour mixings and colour changes for the PROLED RGBA, RGBW or RGBAW products can be achieved (by automatic programs or DMX, DALI or 1-10 V control). Any fixed colour can as well be selected and dimmed. The automatic programs can be changed by RDM with the PC-DMX/RDM INTERFACE and the software (included with the PC-DMX/RDM INTERFACE). With RDM also the configuration of the RGBAW DMX POWER SUPPLIES is possible by using the IR receiver or RF receiver all programs can be controlled with the IR or RF remote controller.

Two versions are available:
CA (common anode – common plus) and CC (common cathode – common minus). The MBNLED PRO CONTROLLER RGBAW MULTI can also be used as 5 channel dimmer for the monochrome PROLED products.

  • Each power supply has five channels – R (red), G (green), B (blue), A (amber), W (white)
  • Power 300 Watt (5x 60 Watt)
  • Power range 12–24 V
  • MULTI input: DMX 512, DALI, 1-10 V controllable
  • Remote controllable per RDM by using the PC-DMX/RDM INTERFACE and the software
  • IR or RF remote controllable by using the IR INTERFACE or RF INTERFACE
  • 9 integrated stand alone programs (changeable with the PC-DMX/RDM INTERFACE)
  • Each program with speed adjustment from 0,05 sec to 30 min
  • Each colour manually selectable and dimmable
  • A colour can be saved as default colour, that is automatically set after restarting the device
  • Selectable PWM frequency (80-1200 Hz)
  • Overheat protection
  • Master – Slave operation possible
  • Graphic LCD display and four operating buttons
  • Mountable at wall or ceiling and also for DIN RAIL mounting
Dimension (w x h x d):

291 x 76 x 30 mm



order code output voltage power version weight
L513513G5 12-24 V 300 Watt Common Anode 0,6 kg
L513523G5 12-24 V 300 Watt Common Cathode 0,6 kg
