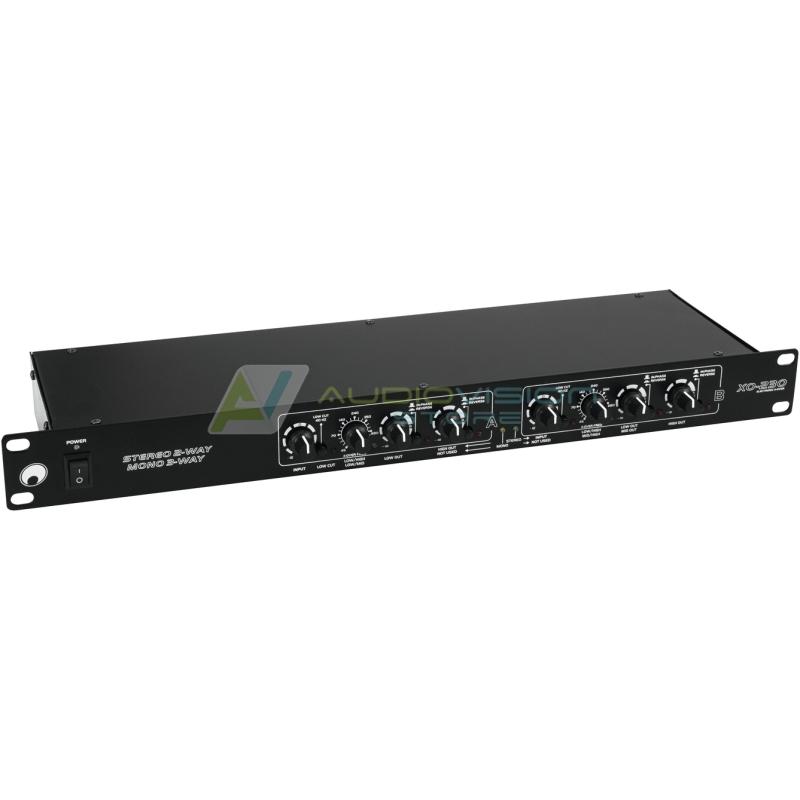

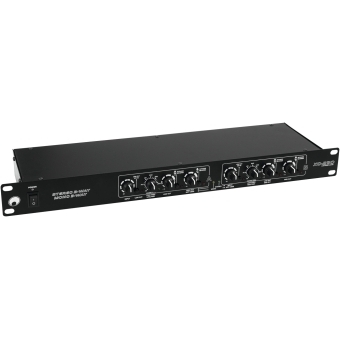

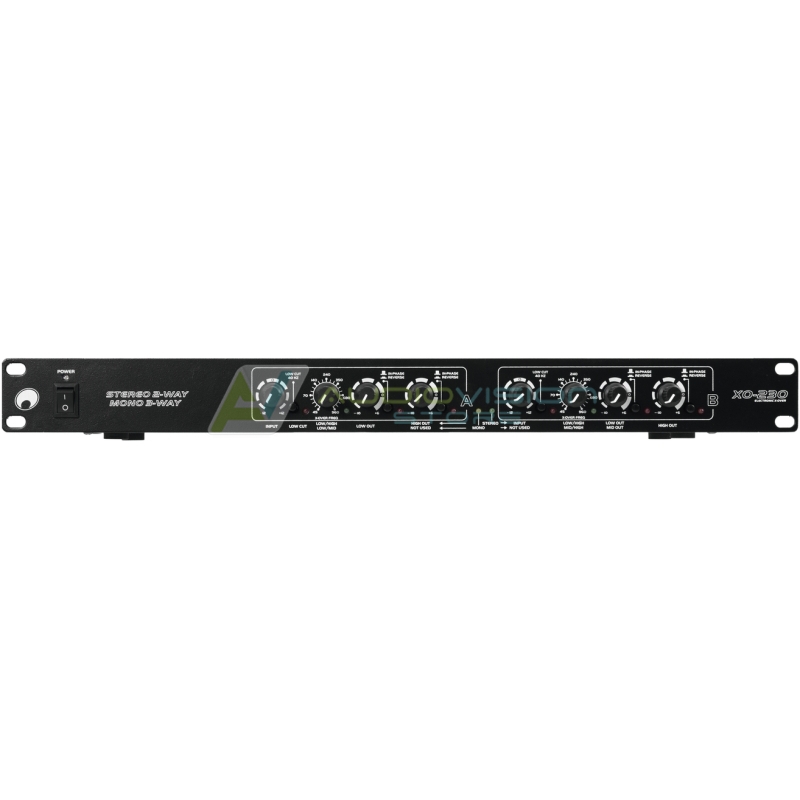

OMNITRONIC XO-230 Active Crossover

Omnitronic
cod produs: 10355627
In stoc furnizor
435.85 Lei 392.27 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

Active crossover

  • 2-way or 3-way stereo operation
  • Variable 24 dB per octave Linkwitz-Riley filters
  • Crossover frequencies continuously adjustable between 45 Hz and 9.6 kHz
  • Low frequency summed (subwoofer) output
  • Individual output level controls for each frequency range
  • Butterworth low-cut filter (12 dB/octave 40 Hz) to protect subwoofers
  • x10 range switch on both channels
  • Phase reverse switch on all outputs
  • LED indicators for all important functions for easy status identification
  • Balanced XLR inputs and outputs
  • Rack installation, 1 U
Power supply:230 V AC, 50 Hz
Power consumption:20 W
Operation modes:2-way stereo or 3-way mono
Inputs:XLR, electronically balanced/unbalanced
Impedance:balanced >50 kohms, unbalanced >25 kohms
Max. input level:+22 dBu typical, balanced or unbalanced
Outputs:XLR, electronically balanced/unbalanced
Impedance:balanced 200 ohms, unbalanced 100 ohms
Max. output level:>+21 dBu balanced/unbalanced into 2 kohms or greater
S/N ratio:>100 dB
THD: 0.05%
Crosstalk:>80 dB, -3 dB
Crossover frequencies:45-9600 Hz
Filter type:Linkwitz-Riley, 24 dB/octave, state-variable
Low cut:40 Hz Butterworth, 12 dB/octave
Phase invert:per output
Input gain:-±12 dB
Output gain:- ~ to +6 dB
Dimensions (W x D x H):483 x 152 x 48 mm
Weight:1.8 kg
