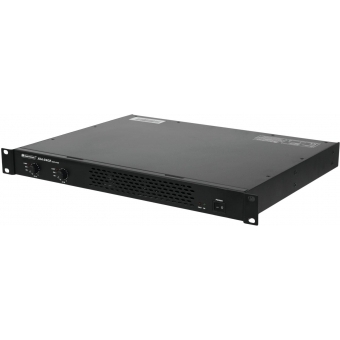

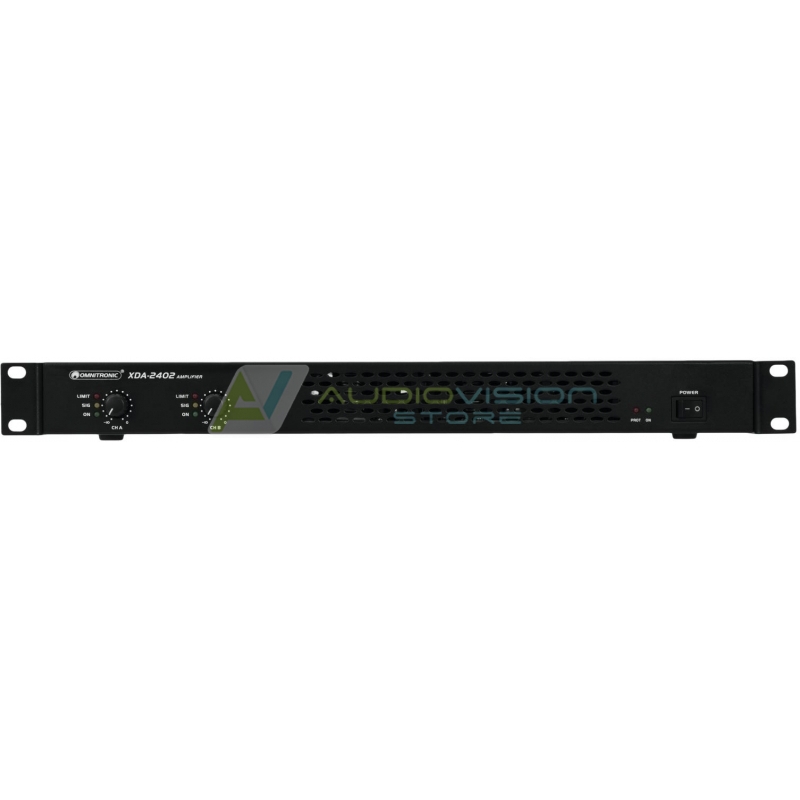

OMNITRONIC XDA-2402 Class D Amplifier

Omnitronic
cod produs: 10451636
In stoc furnizor
1905.57 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

Stereo PA amplifier with integrated SMPS 2 x 1200 W

  • Stereo PA amplifier with class D circuitry
  • Low weight and height due to integrated switch mode power supply
  • Speaker switch-on delay and auto limiters
  • 2 level controls
  • LEDs for activated protective circuit, limiter, signal, and power
  • Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, softstart
  • Ground lift switch against humming
  • Fan cooling
  • Electronically balanced inputs via XLR mounting jacks with feed-through output
  • Speaker outputs via lockable speaker jacks
  • Rack installation with 1 unit
Power supply:230 V AC, 50 Hz
Power consumption:465(1/8 power)
Power output (RMS):
stereo 4 ohms2 x 1200
stereo 8 ohms2 x 880
Frequency range:30-20000 Hz
Distortion factor:<0.02 %
Voltage gain:36 dB at 8 ohms
S/N ratio:>100 dB
Input impedance:20 kohms (balanced), 10 kohms (unbalanced)
Input sensitivity:1.25 V RMS
Input connectors:2 x XLR
Output connectors:2 x Speaker, 2 x XLR feed-through output
Circuitry:class D
Control elements:power switch, level control per channel, ground lift switch
LED indicators:Protect, limit, signal, power
Protection circuits:Short-circuit, overheat, DC voltage, power on/off
transients, softstart
Construction:steel chassis
Dimensions (DxWxH):355 x 483 x 44 mm (19", 1 U)
Weight:6.4 kg
Shipping weight:7.75 kg
