Mixer XONE:23C Allen & Heath

Allen & Heath
cod produs: XONE:23C
La comanda
2136.49 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

HIGH PERFORMANCE DJ MIXER AND SOUNDCARD

The Xone:23C brings together the best of digital DJing and conventional mixing in a compact accessible format.

This high performance DJ mixer is equipped with a premium quality, 4 stereo channel 96kHz 24bit internal soundcard and offers plug n’ play connection via X:LINK to Xone:K series controllers, making it perfect for performers looking to combine the convenience of digital DJing and recording with the hands-on control and visual appeal of a real mixer.

Xone:23C includes an enhanced version of the legendary Xone filter with resonance control, VCA faders, 3 band total kill EQ, illuminated switches, crossfader curve selector and styling inspired by the flagship Xone:DB4.



At the heart of the mixer is the renowned analogue Voltage Control Filter (VCF) system offering Low-Pass and High-Pass filters, frequency sweep and ‘mild to wild’ resonance control. There is also an FX loop to connect to third party FX units, which route back in through the filter system.

Xone:23C features 2+2 stereo channels with dual levels for phono and line inputs, allowing four music sources to be connected at the same time, including turntables and CD/media players. Additionally, the internal soundcard enables replay and recording from DJ software, offering users all the benefits of digital DJing whilst using hands-on mixer controls.

The main mix output and mic input are on professional standard balanced XLR’s, and there is a dedicated record output. The Xone:23C is equipped with comprehensive monitoring facilities, including a dedicated booth output with its own volume control, a cue mix control, and signal levels clearly displayed on the 9 segment peak hold  meters.

Styled on the flagship Xone:DB4, the Xone:23C includes soft touch, backlit controls, light-piped meters and a distinctive new shaped steel faceplate. The mixer can also be upgraded with the latest Innofader for enhanced scratch performance, available as an accessory.

Xone:23C comes with Mixvibes Cross LE Software, providing DVS control* and plug n’play mapping for Xone:K series controllers.

4 STEREO CHANNEL USB SOUNDCARD

96kHz 24bit 4 stereo channel USB soundcard which enables replaying and recording from your chosen DJ software, offering digital DJing with a real  mixer.

USB X:LINK

X:LINK provides power and MIDI data over ethernet connection to our Xone:K Series controllers, saving USB ports on computers and offering extended software control.

VCF FILTER SYSTEM

At the heart of the mixer is the renowned analogue Voltage Control Filter (VCF) system offering Low-Pass and High-Pass filters, frequency sweep and ‘mild to wild’ resonance control. There is also an FX loop to connect to third party FX units, which route back in through the filter system.

EXTERNAL FX LOOP

Seamlessly integrate your favourite external FX unit into your setup with send and return connections plus FX loop switching.



3 BAND TOTAL KILL EQ

Both channels feature 3 band EQ Isolator, allowing you to creatively eliminate frequencies and bring them back into the mix with complete control.



Sound Card
4 stereo channel USB2
Sample Rate (Audio) 96 kHz
Bit Depth 24-bit

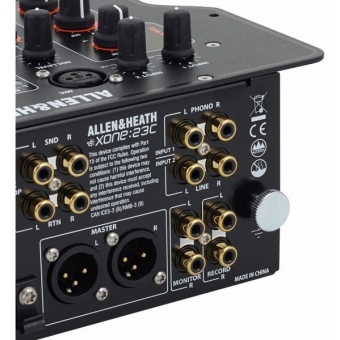

I/O Input
Phono: 4x RCA (2 pair)
Line: 4x RCA (2 pair)
FX Return: 2x RCA (pair)
Mic: XLR-3M

Output
Main Mix: 2x balanced XLR-3M (pair)
Monitor: 2x RCA (2 pair)
Record: 2x RCA (pair)
FX Send: 2x RCA (pair)

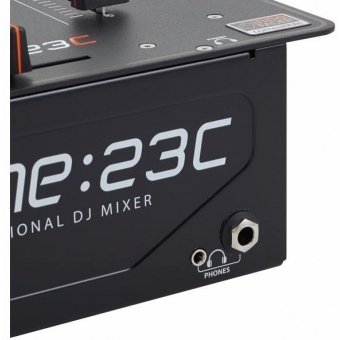

Headphones: stereo 3.5 mm and 1/4" TRS jacks
Impedance Input
Phono: 47 K/330pF
Line: 20 kΩ
FX Return: 10 kΩ
Mic: <2 kΩ

Output
Main Mix: 100 Ω
Monitor: 100 Ω
Record: 100 Ω
FX Send: 100 Ω
Headphones: 1 Ω
Nominal Level Input
Phono: 7 to 100 mV
Line: -10 to +20 dBu
FX Return: 0 to +20 dBu
Mic: -42 to -12 dBu

Output
Main Mix: +4 dBu
Monitor: -2 dBu
Record: -2 dBu
FX Send: -2 dBu

Distortion: +10 dBu
Noise: unity
Maximum Level Output
Main Mix: +28 dBu
Monitor: +22 dBu
Record: +19 dBu
FX Send: +19 dBu
Headphones: 200 mW RMS into 30 Ω
Fader Shut Off: > -80 dB
Xfade Shut Off: > -80 dB
Distortion 0.01% THD +N
Noise Main Mix Out (22 to 22,000 Hz): -85 dBu un-weighted
General
Frequency Response 10 to 50,000 Hz ± 0 dB
Dimensions (W x D x H) 9.4 x 12.4 x 4.2" (240 x 315 x 106 mm)
Weight 6.0 lb (2.7 kg)

Specificatiile Produsului

  • Intrare USB Da
  • Numar canale 2 canale
  • Tip mixer audio Mixer DJ
