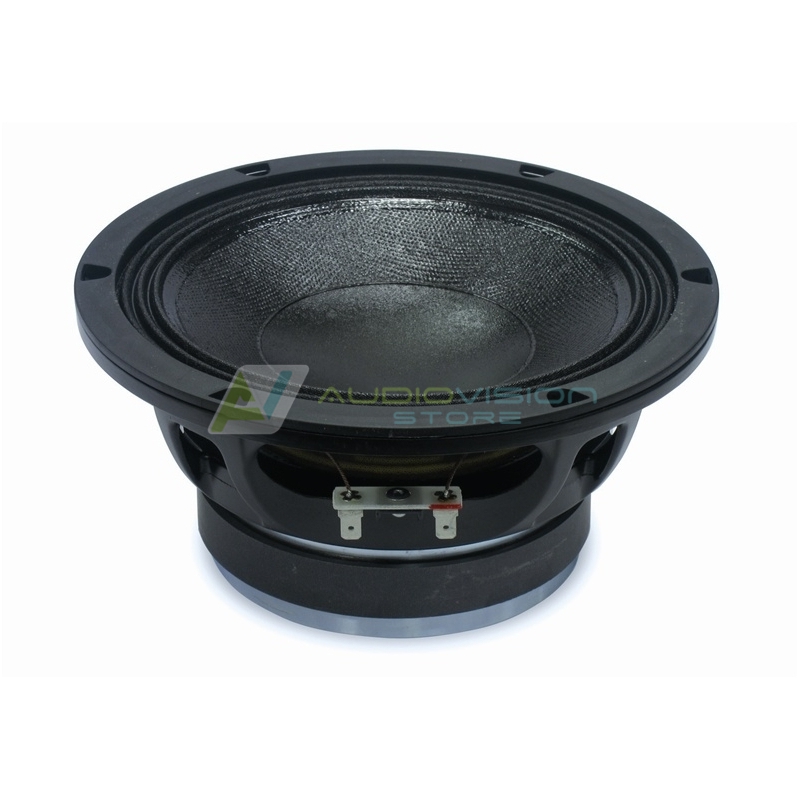

Difuzor MB ferita 8MB500

18 Sound
cod produs: 8MB500
La comanda
606.84 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

  • 95 dB SPL 1W / 1m average sensitivity
  • 51 mm (2 in) Interleaved Sandwich Voice coil (ISV)
  • 400 Watt program power handling
  • Triple roll suspension for increased motion control
  • Weather protected tretaed cellulose cone
  • Lightweight diecast aluminum basket design
  • Suitable for compact two way and multiway systems
GENERAL SPECIFICATIONS
Nominal Diameter200 mm (8 in)
Rated Impedance8 Ohm
AES Power280 W
Program Power400 W
Peak Power800 W
Sensitivity95 dB
Frequency Range60 ÷ 4500 Hz
Power Compression @-10dB0,5 dB
Power Compression @-3dB1,4 dB
Power Compression @Full Power2,3 dB
Max Recomm. Frequency3000 Hz
Recomm. Enclosure Volume10 ÷ 40 lt. (0,35 ÷ 1,41 cuft)
Minimum Impedance5,8 Ohm at 25°C
Max Peak To Peak Excursion19 mm (0,75 in)
Voice Coil Diameter51 mm (2 in)
Voice Coil Winding Materialaluminum
SuspensionTriple-roll, Polycotton
ConeCurvilinear, Treated cellulose
THIELE SMALL PARAMETERS
Fs74 Hz
Re5,1 Ohm
Sd0,023 sq.mt. (35,65 sq.in.)
Qms2,66
Qes0,51
Qts0,43
Vas21,5 lt. (0,76 cuft)
Mms17 gr. (0,04 lb)
BL9,0 Tm
Linear Mathematical Xmax± 6 mm (± 0,24 in)
Le (1kHz)0,60 mH
Ref. Efficiency 1W@1m (half space)94,4 dB
MOUNTING INFORMATIONS
Overall diameter210 mm (8,27 in)
N. of mounting holes6
Mounting holes diameter6 mm (0,23 in)
Bolt circle diameter195 - 198 mm (7,68 - 7,80 in)
Front mount baffle cutout ø186 mm (7,32 in)
Rear mount baffle cutout ø184 mm (7,24 in)
Total depth99,5 mm (3,92 in)
Flange and gasket thickness14,5 mm (0,57 in)
Net weight3,4 kg (7,5 lb)
Shipping weight3,72 kg (8,22 lb)
CardBoard Packaging dimensions235 x 235 x 150 mm (9,25 x 9,25 x 5,91 in)

Specificatiile Produsului

  • Dimensiune Difuzor 8"
  • Echipamente Sunet Difuzoare
  • Impedanta 4/8/16 ohm
  • Putere RMS > 100 W
  • Tehnologie Ferita
  • Tip difuzor MB Medii - Bass

Review-uri

Fii primul care isi exprima parerea!
Daca ai testat acest produs ajuta alti utilizatori sa afle cateva detalii despre el.
Scrie-ti parerea

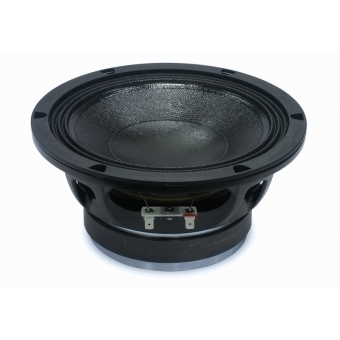

Difuzor MB ferita 8MB500
