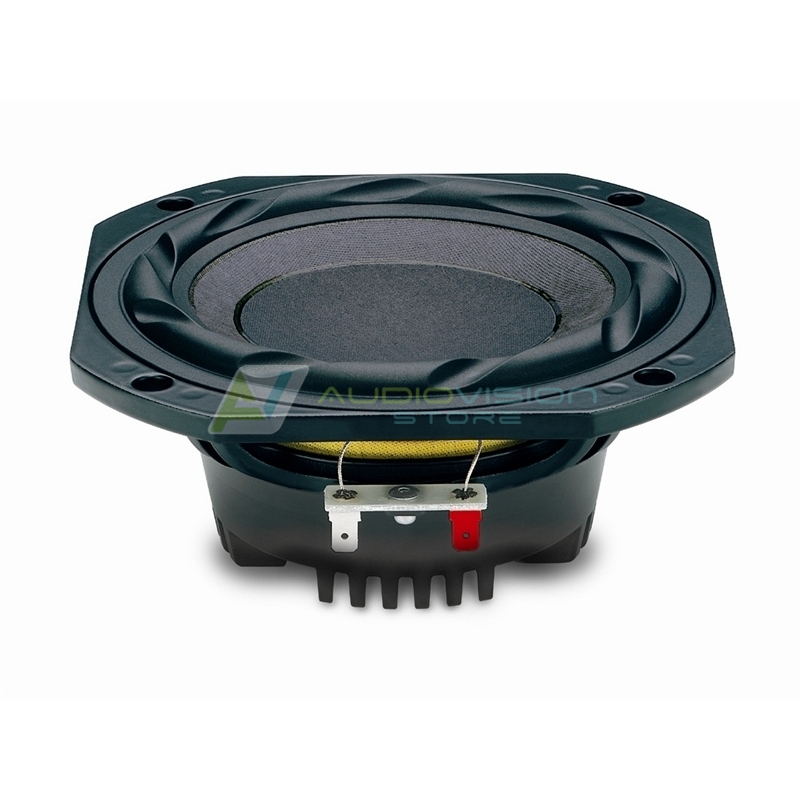

Difuzor LF neodim 6ND430

18 Sound
cod produs: 6ND430
In Stoc
642.29 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

  • 92,5 dB SPL 1W / 1m average sensitivity
  • 45 mm (1,77 in) aluminum voice coil
  • 200 W AES power handling
  • Neodymium motor assembly
  • Weather protected cone
  • Improved heat dissipation via unique basket design
  • Ideal for compact two way and multiway systems
GENERAL SPECIFICATIONS
Nominal Diameter152mm (6 in)
Rated Impedance8 Ohm
AES Power200 W
Program Power260 W
Peak Power500 W
Sensitivity92,5 dB
Frequency Range63 ÷ 5500 Hz
Power Compression @-10dB1,0 dB
Power Compression @-3dB1,5 dB
Power Compression @Full Power2,9 dB
Max Recomm. Frequency3000 Hz
Recomm. Enclosure Volume10 ÷ 40 lt. (0,35 ÷ 1,41 cuft)
Minimum Impedance6,1 Ohm at 25°C
Max Peak To Peak Excursion22 mm (0,87 in)
Voice Coil Diameter44 mm (1,75 in)
Voice Coil Winding Materialaluminum
SuspensionSingle roll, Rubber
ConeCurvilinear, Paper
THIELE SMALL PARAMETERS
Fs61 Hz
Re5.5 Ohm
Sd0,0133 sq.mt. (20,6 sq.in.)
Qms6.5
Qes0.28
Qts0.27
Vas12.6 lt. (0,4 cuft)
Mms13,3 gr. (0,03 lb)
BL10.0 Tm
Linear Mathematical Xmax± 5 mm (±0,20 in)
Le (1kHz)0.28 mH
Ref. Efficiency 1W@1m (half space)92 dB
MOUNTING INFORMATIONS
Overall diameter162 mm (6,38 in)
N. of mounting holes4
Mounting holes diameter5,5 mm (0,22 in)
Bolt circle diameter170 mm (6,69 in)
Front mount baffle cutout ø148 mm (5,38 in)
Rear mount baffle cutout ø148 mm (5,38 in)
Total depth73 mm (2,87 in)
Flange and gasket thickness9,5 mm (0,37 in)
Net weight1,25 kg (2,76 lb)
Shipping weight1,8 kg (3,97 lb)
CardBoard Packaging dimensions170 x 170 x 80 mm (6,69 x 6,69 x 3,15 in)

Specificatiile Produsului

  • Dimensiune Difuzor 6"
  • Echipamente Sunet Difuzoare
  • Impedanta 4/8/16 ohm
  • Putere RMS > 200 W
  • Tehnologie Neodimium
  • Tip difuzor LF Bass - Joase
