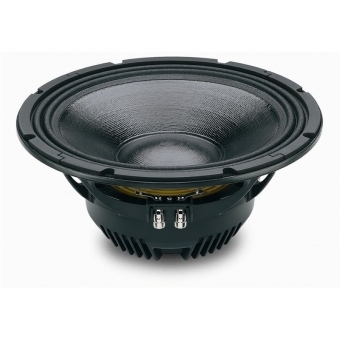

Difuzor LF neodim 12ND930

18 Sound
cod produs: 12ND930
La comanda
1372.11 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

  • 98 dB SPL 1W / 1m average sensitivity
  • 75 mm (3 in) Interleaved Sandwich Voice coil (ISV)
  • 500 W AES power handling
  • External neodymium magnet assembly
  • Double Demodulating Rings (DDR) for lower distortion
  • Humidity resistant cone
  • Ideal for 2 way systems and compact high loading subwoofer applications
GENERAL SPECIFICATIONS
Nominal Diameter300mm (12 in)
Rated Impedance8 Ohm
AES Power500W
Program Power800W
Peak Power1600W
Sensitivity98dB
Frequency Range46 ÷ 4500 Hz
Power Compression @-10dB0,9 dB
Power Compression @-3dB2,2 dB
Power Compression @Full Power3,1 dB
Max Recomm. Frequency2000 Hz
Recomm. Enclosure Volume30 ÷ 100 lt. (1,06 ÷ 3,53 cuft)
Minimum Impedance6,4 Ohm at 25°C
Max Peak To Peak Excursion30 mm (1,18 in)
Voice Coil Diameter75 mm (3 in)
Voice Coil Winding Materialcopper
SuspensionM-roll, Polycotton
ConeCurvilinear, Treated Paper
THIELE SMALL PARAMETERS
Fs50 Hz
Re5,5 Ohm
Sd0,0531 sq.mt. (82,31 sq.in.)
Qms5,64
Qes0,218
Qts0,21
Vas70 lt. (2,47cuft)
Mms57 gr. (0,13 lb)
BL21,2 Tm
Linear Mathematical Xmax± 6,5 mm (± 0,26 in)
Le (1kHz)1,65 mH
Ref. Efficiency 1W@1m (half space)98 dB
MOUNTING INFORMATIONS
Overall diameter315 mm (12,4 in)
N. of mounting holes8
Mounting holes diameter7,15 mm (0,28 in)
Bolt circle diameter296-300 mm (11,65-11,8 in)
Front mount baffle cutout ø282 mm (11,1 in)
Rear mount baffle cutout ø282 mm (11,1 in)
Total depth140 mm (5,52 in)
Flange and gasket thickness11,5 mm (0,45 in)
Net weight4 kg (8,83 lb)
Shipping weight4,8 kg (10,6 lb)
CardBoard Packaging dimensions332 x 332 x 184 mm(13,07 x 13,07 x 7,24 in)

Specificatiile Produsului

  • Dimensiune Difuzor 12"
  • Echipamente Sunet Difuzoare
  • Impedanta 8 ohm
  • Putere RMS > 500 W
  • Tehnologie Neodimium
  • Tip difuzor LF Bass - Joase
