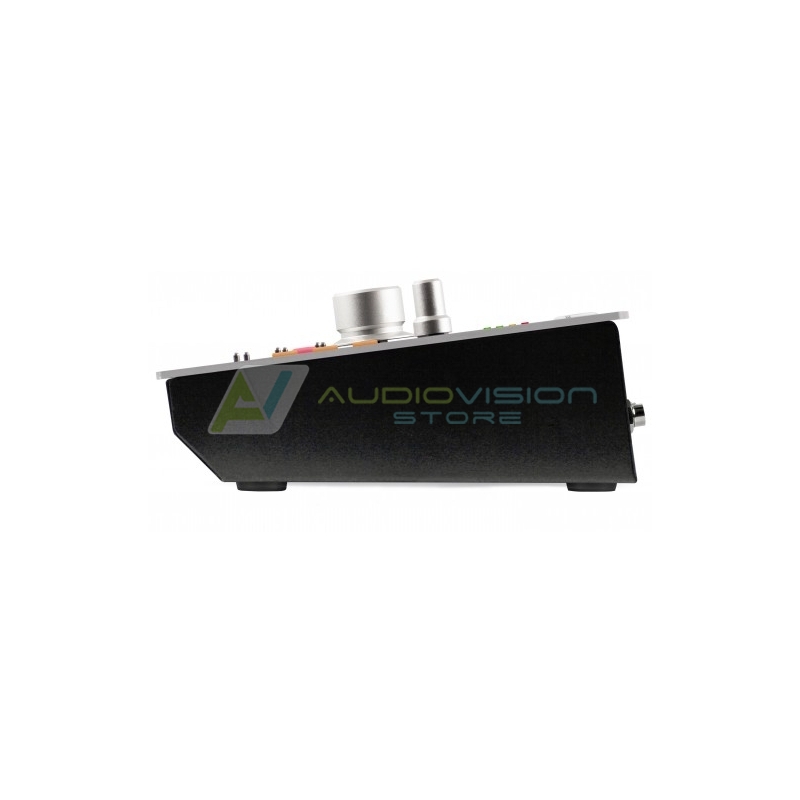

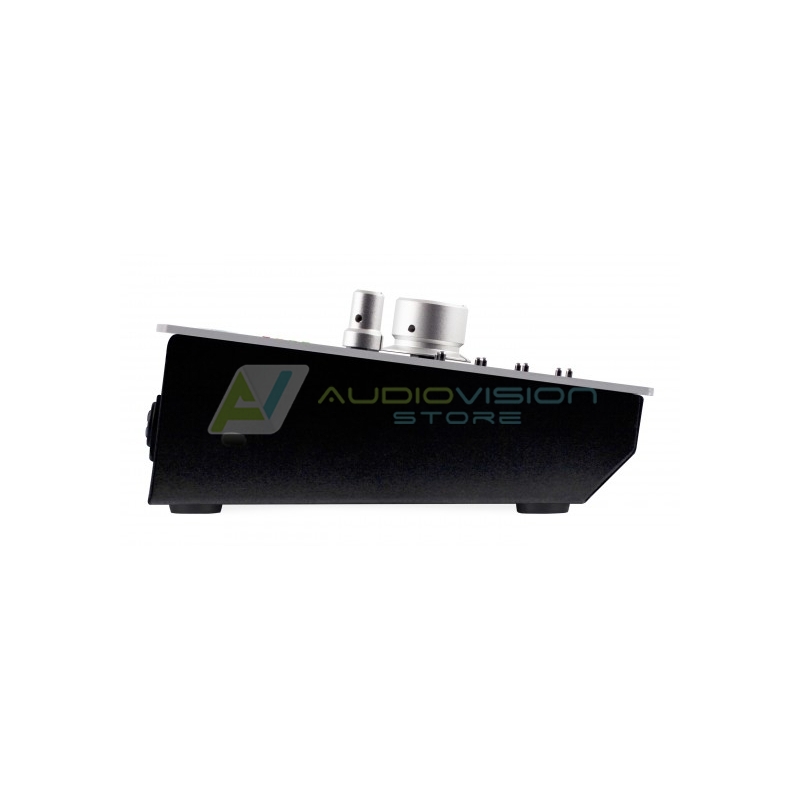

Interfata audio Audient iD22

Audient
cod produs: iD22
In Stoc
2451.04 Lei 2328.49 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

HIGH PERFORMANCE AD/DA INTERFACE & MONITORING SYSTEM

iD22 transforms your DAW into a world-class recording system by connecting directly to your microphones, computer and monitors. Our focus is on producing the very best audio quality while keeping all of the functions simple and intuitive - enabling you to concentrate on the creative process.

  • 10-in, 14-out Desktop Interface
  • 2-in, 6-out high performance 24-bit/96kHz AD/DA converters
  • 2 superb class-A mic preamplifiers & 1 discrete JFET instrument input
  • Fully balanced insert points for integrating outboard gear
  • High current headphone amplifier fed by an independent DAC
  • Low latency DSP mixer for artist mixes
  • Main and alternative stereo outputs
  • User defined monitoring functionality with hardware control
  • USB2.0 class compliant connectivity - Mac OS10.6.8 or later
  • Multi-application ASIO and WDM drivers for Windows 7 and later

Audio Quality

PRISTINE CONVERTER TECHNOLOGY

iD22 provides two analogue inputs and six analogue outputs, these are driven by high quality 24-bit/96kHz convertors. Through months of tests we optimsed component selections and circuit topologies to obtain every last ounce of convertor performance. The results are simply stunning - pin sharp stereo imaging, a fast low end with an impeccably detailed and smooth top end.

WORLD CLASS MIC PRES

iD22 provides two classic Audient microphone preamplifiers - the same pre amps that have become renowned with over 50,000 channels in use worldwide. Our hybrid design utilises a class-A front end to provide clean and musical characteristics that sound stunning on any session. iD22 has the best mic preamp found on any audio interface and instantly provides a platform to produce outstanding recordings.

Both input channels have a pad to handle hot levels, phantom power for condenser microphones, a high pass filter to remove unwanted low frequencies and a polarity switch to help you phase align your inputs. Channel two features a discrete JFET DI input for you guitars, synths and other instruments.

Listen

During the development of iD22 we wanted to put it through it's paces. We have filmed three tracks in three different musical genres which have been recorded and mixed through iD22.

Expandbility

GROWS WITH YOUR NEEDS

iD22 is more than just a two in, six out interface. As your system grows iD22 can be expanded via the optical input and output connectors, supporting both ADAT and SPDIF. When tracking drums you can expand up to ten inputs via an eight-channel mic pre such as our ASP880 into the iD22 via ADAT. When working with your favourite outboard reverb, this can be connected in stereo via S/PDIF and integrated via the mixer app offering you a practical and flexible desktop package.

FULLY BALANCED INSERTS

The two fully balanced insert points give you the chance to add your processing prior to conversion. Insert your favourite compression and EQ to build vocal chains that rival the very best. The insert return also gives you direct access to the analogue to digital converters - providing the cleanest signal path possible, making it great for print-backs or integrating outboard line level sources.

Monitor Control

CONSOLE STYLE MONITOR CONTROL

iD22 has built-in console style monitor control functions - Mono, polarity, dim, cut, speaker switching, talkback & cue mix monitoring. This makes iD22 the first audio interface that truly is the hub of a studio.

You can assign any input channel to be the talkback source from the mixer app, and feed it straight into the two cue mixes.

CUSTOMISE YOUR CONTROL SURFACE

We understand how important it is for you to be able to focus on the music and have designed the iD22 with that in mind. No more time spent searching for that software talkback control, just assign the functions you need to the three hardware function keys and allow the creativity to flow. The solid aluminium control knobs look and feel great, and the dedicated DIM and CUT controls give you the hands-on control that’s familiar to large format console users.

Low Latency Mixer

BEAUTIFULLY SIMPLE MIXER APP

All the internal routing, mixing and configuration of iD22 can be done within the iD22 mixer app. We have focused on the features you really need and have made sure they are fast and easy to use. You can even label your channels ‘console-tape’ style for that authentic Audient experience! As well as being easy on the eye, the mixer app is designed to keep out of your way and let the music be the prime focus.

BUILT TO LAST

Quality deserves protection and iD22 has been designed to last. It's all-metal construction, machined aluminium knobs and toggle switches will stand up to countless late nights in the studio and days on the road.




MICROPHONE PREAMPLIFIERS:

(measured to insert send)
MIC GAIN: -10 to +60 dB (-10dB Pad)
LINE GAIN: -20 to +40 dB (-10dB Pad)
PHANTOM POWER: 48v +/-4v @ 10mA/Channel
MIC EIN: <-125dBu
CMRR: >80dB @ 1kHz
MAXIMUM INPUT LEVEL: +22dBu (+32dBu with Pad)
INPUT IMPEDANCE (Mic): >3kΩ Balanced
INPUT IMPEDANCE (Line): >10kΩ Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 100kHz
CROSSTALK: <-90dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): 0.0015% (-96dBu)
SNR: 96dB
HPF: -3dB @ 100Hz, 2nd Order (12dB/Octave)
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I (Channel 2):

(measured to insert send)
D.I GAIN: -16 to +54 dB (-10dB Pad)
MAXIMUM INPUT LEVEL: +16dBu (typical), +22dBu
INPUT IMPEDANCE: 1MegΩ Unbalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz): <0.03% (-70dBu)
SNR: 93dB
1/4” JACK: TIP (Hot) & SLEEVE (Shield)

INSERT SENDS (Mic Pre Out):

MAXIMUM OUTPUT LEVEL:
+22dBu
OUTPUT IMPEDANCE:
<100Ω Balanced
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

POWER SUPPLY:

12VDC Centre Positive DC Adapter - >1.5Amps

Internally conditioned to provide +48VDC, +/-15VDC & low voltage rails for digital processing core & converters.

iD22 cannot be bus powered for quality reasons.

ADC LINE INPUTS (Insert Returns):

(measured at optical output under AES-17)
MAXIMUM INPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
INPUT IMPEDANCE: >10kΩ Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: -100dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.002% (-94dB)
THD+N @ -6dBFS (1kHz): <0.0015% (-97dB)
DYNAMIC RANGE: 117dB un-weighted
120dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

DAC OUTPUTS (1-4):

(measured from optical input under AES-17)
MAXIMUM OUTPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
OUTPUT IMPEDANCE: <100Ω Balanced
FREQUENCY RESPONSE: +/-0.5dB 5Hz to Fs/2
CROSSTALK: -110dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0008% (-101dB)
DYNAMIC RANGE: 110dB un-weighted
114dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

HEADPHONE OUTPUT (5&6):

(measured from optical input under AES-17)
MAXIMUM OUTPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
OUTPUT IMPEDANCE: <50Ω Balanced
FREQUENCY RESPONSE: +/-0.5dB 5Hz to Fs/2
CROSSTALK: -110dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0008% (-101dB)
DYNAMIC RANGE: 110dB un-weighted
114dB A-weighted
MAX LEVEL INTO 30ohms: +8dBu, 0.0032%
THD+N, 2.75Vpk
Power: 250mW or Pavg 125mW

MAX LEVEL INTO 60ohms: +11dBu, 0.0022%
THD+N, 4.3Vpk
Power: 300mW or Pavg 150mW

MAX LEVEL INTO 600ohms: +17.2dBu, 0.0013%
THD+N, 7.94Vpk
Power: 105mW or Pavg 52.5mW

1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

DIGITAL i/o:

ADAT 8 CHANNELS 44.1 - 48kHz
ADAT 4 CHANNELS 88.2 - 96kHZ
STEREO S/PDIF 44.1 - 96kHz

USB2.0 HIGH SPEED

No. of INPUT CHANNELS 10
(2 Analogue, 8 Digital)
No. of OUTPUT CHANNELS 14
(6 Analogue, 8 Digital)

iD DSP Mixer Roundtrip (in to out) Latency:

44.1 kHz 1.43ms
48.0 kHz 1.31ms
88.2 kHz 0.719ms
96.0 kHz 0.656ms

DAW Playback Latency @ 32 Sample Buffer for Software Instrument Playback:

44.1 kHz 3.166ms
96.0 kHz 2.12ms

DAW Roundtrip Software Monitoring Latency @ 32 Sample Buffer (in to out):

44.1 kHz 6.33ms
96.0 kHz 4.24ms
