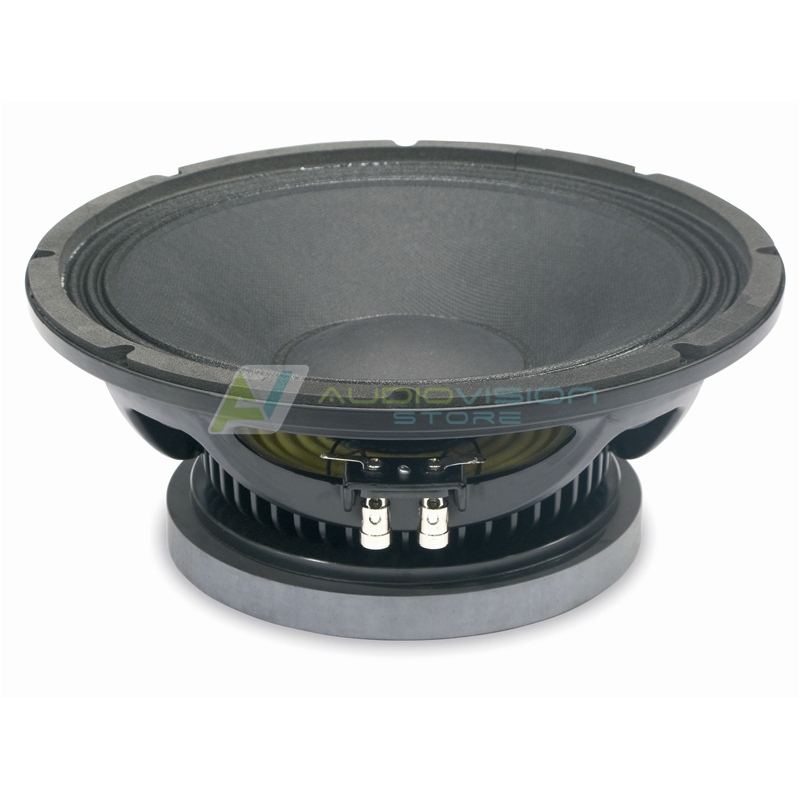

Difuzor MB ferita 12MB650

18 Sound
cod produs: 12MB650
La comanda
917.61 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

  • 98 dB SPL 1W / 1m sensitivity
  • 65 mm (2.5 in) Edgewound Aluminum Voice coil (EWAL)
  • 800W program power handling
  • Improved heat dissipation via proprietary basket design
  • Weather protected cone and plates for outdoor usage
  • Ideal for high quality two way and stage monitor applications
GENERAL SPECIFICATIONS
Nominal Diameter300 mm (12 in)
Rated Impedance8 Ohm
AES Power400 W
Program Power800 W
Peak Power1600 W
Sensitivity98 dB
Frequency Range45 ÷ 5000 Hz
Power Compression @-10dB0,7 dB
Power Compression @-3dB1,5 dB
Power Compression @Full Power2,2 dB
Max Recomm. Frequency2000 Hz
Recomm. Enclosure Volume70 ÷ 150 lt. (2.47 ÷ 5.30 cuft)
Minimum Impedance7,2 Ohm at 25°C
Max Peak To Peak Excursion24 mm (0,95 in)
Voice Coil Diameter65 mm (2.5 in)
Voice Coil Winding Materialaluminum
SuspensionTriple-roll, Polycotton
ConeCurvilinear, Treated paper
THIELE SMALL PARAMETERS
Fs48 Hz
Re6,0 Ohm
Sd0,053 sq.mt. (82,15 sq.in.)
Qms3,2
Qes0,24
Qts0,23
Vas90 lt. (3.18 cuft)
Mms48 gr. (0.11 lb)
BL19 Tm
Linear Mathematical Xmax± 5,5 mm (± 0.22 in)
Le (1kHz)0,83 mH
Ref. Efficiency 1W@1m (half space)98,1 dB
MOUNTING INFORMATIONS
Overall diameter310 mm (12,2 in)
N. of mounting holes8
Mounting holes diameter5,9 mm (0,23 in)
Bolt circle diameter295 mm (11.61 - 11,8 in)
Front mount baffle cutout ø280 mm (11,02 in)
Rear mount baffle cutout ø280 mm (11,02 in)
Total depth143 mm (5.63 in)
Flange and gasket thickness14 mm (0.55 in)
Net weight6,8 kg (14.95 lb)
Shipping weight7,5 kg (16.53 lb)
CardBoard Packaging dimensions332 x 332 x 184 mm (13,07 x 13,07 x 7,24 in)

Specificatiile Produsului

  • Dimensiune Difuzor 12"
  • Echipamente Sunet Difuzoare
  • Impedanta 8 ohm
  • Putere RMS > 400 W
  • Tehnologie Ferita
  • Tip difuzor MB Medii - Bass
