Transducer coaxial ferita 8CX401F

18 Sound
cod produs: 8CX401F
La comanda
1182.66 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

Key Features

  • 95dB SPL 1W / 1m average sensitivity
  • 280W LF - 50W HF power handling
  • 51mm (2 inches) LF Interleaved Sandwich Voice coil (ISV)
  • 25,4mm (1 inch) HF driver edgewound voice coil
  • 90 degrees coverage pattern
  • Ideal for compact reflex applications

Description

The 8CX400F coaxial transducer is a 8 inch - 1 inch coaxial driver combining excellent linearity with good efficiency and power handling capabilities.
It is primarily intended for compact reflex enclosures and, because of its versatile characteristics, may also be used in multiway systems or ceiling applications. Its nominal dispersion is 90 degrees.
The curvilinear, paper LF section cone is formed using a unique wood pulp composition designed to achieve the best possible rigidity and stiffness. A polycotton multiroll surround to provide increased excursion whilst controlling break up modes carries it.
The 51mm Ø state-of-the-art, aluminum wire voice coil employees same technology of that fitted to our top-of-the-range models using our Interleaved Sandwich Voice coil (ISV) technology. In essence, a high strength Fiberglas former is used to carry windings on both the outer and inner surfaces to achieve a mass balanced coil. This
results in an extremely linear motor assembly, which, in conjunction with the highly advanced design of the magnetic structure, provides a high force factor or BL.
The high frequency driver incorporates a polyester material diaphragm for best movement and stress control; the special radialribs increase stiffness avoiding uncontrolled vibration modes in the usable frequency range. An edge-wound copper clad aluminum voice coil wounded on treated Nomex completes the diaphragm assembly.
A computer aided FEA has been used in order to maximize the cone profile coupling and to control the energy in the desired frequency range.
A dedicated high quality passive crossover network is available upon request.
With the increasing use of outdoor audio events, the ability to perform in humid environments is another feature of the 8CX400F. This is achieved by means of exclusively developed humidity repellent cone treatment.

LF General Specifications

Nominal Diameter 200 mm (8 in)
Rated Impedance 8 Ohm
AES Power 280 W
Program Power 400 W
Peak Power 800 W
Sensitivity 95 dB
Frequency Range 65 ÷ 6100 Hz
Power Compression @-10dB 0,5 dB
Power Compression @-3dB 1,4 dB
Power Compression @0dB 2,3 dB
Max Recomm. Frequency 2800 Hz
Recomm. Enclosure Volume 10 ÷ 40 lt. (0,35 ÷ 1,41 cuft)
Minimum Impedance
6,1 Ohm at 25°C
Max Peak To Peak Excursion 19 mm (0,75 in)
Voice Coil Diameter 51 mm (2 in)
Voice Coil Winding Material Edge-wound Aluminum
Suspension M-roll, Polycotton
Cone Curvilinear, Paper

HF General Specifications

D.C. Resistance
8,3 Ohm
AES power
25 W above 2,5 kHz
Program power
50 W above 2,5 kHz
Sensitivity 105 dB
Frequency Range 2,5 kHz ÷ 20 kHz
Recomm. Xover Frequency 3 kHz 12 dB/oct
Voice Coil Diameter 25,4 mm (1,0 in)

Thiele Small Parameters

Fs 56 Hz
Re 5 Ohm
Sd 0,0227 sq.mt. (35,2 sq.in.)
Qms 3,23
Qes 0,38
Qts 0,34
Vas 23,9 lt. (0,85 cuft)
Mms 18 gr. (0,04 lb)
BL 9,3 Tm
Mathematical Xmax ± 5,8 mm (± 0,23 in)
Le (1kHz) 0,96 mH
Half space efficiency
93,7 dB

Mounting information

Overall diameter 210 mm (8,27 in)
N. of mounting holes and bolt 6
Mounting holes diameter 6,25 mm (0,25 in)
Bolt circle diameter 195 - 198 mm (7,68 - 7,80 in)
Front mount baffle cutout ø 186 mm (7,32 in)
Rear mount baffle cutout ø 184 mm (7,24 in)
Total depth 150,5 mm (5,93 in)
Flange and gasket thickness 14,5 mm (0,57 in)
Net weight 4,4 kg (9,76 lb)
Shipping weight 5,0 kg (11,1 lb)
CardBoard Packaging dimensions 235x235x165 mm (9,25x9,25x6,46 in)

Specificatiile Produsului

  • Dimensiune Difuzor 8"
  • Echipamente Sunet Difuzoare
  • Impedanta 8 ohm
  • Putere RMS > 200 W
  • Tehnologie Ferita
  • Tip difuzor CX Coaxial

Review-uri

Fii primul care isi exprima parerea!
Daca ai testat acest produs ajuta alti utilizatori sa afle cateva detalii despre el.
Scrie-ti parerea
Transducer coaxial ferita 8CX401F
  • Transducer coaxial ferita 8CX401F #1
  • Transducer coaxial ferita 8CX401F #2

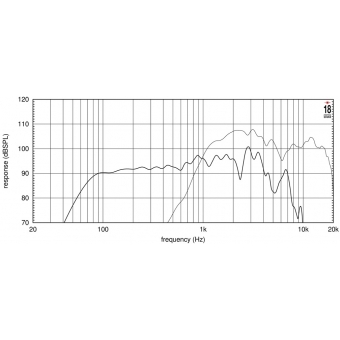

  • Transducer coaxial ferita 8CX401F #3
