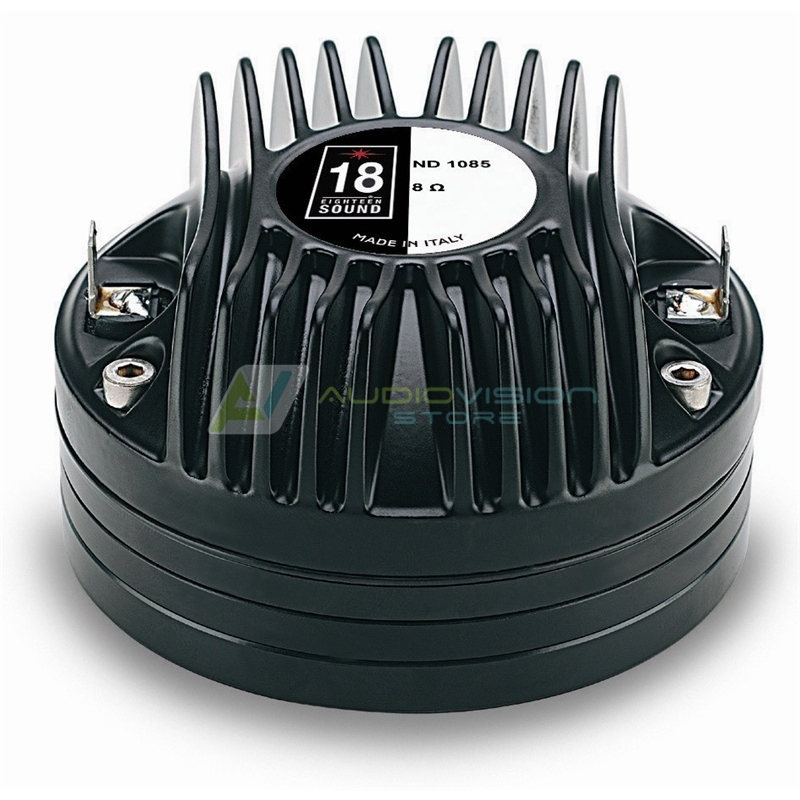

Difuzor inalte neodim ND1085

18 Sound
cod produs: ND1085
La comanda
824.68 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

  • 1 inch exit throat
  • 109 dB 1W / 1m average sensitivity
  • 80 Watt program power handling
  • 44 mm (1 3/4 in) edgewound aluminum voice coil
  • PEN diaphragm for extended frequency response
  • Proprietary phase plug design
  • Neodymium ring magnet for excellent transient response
  • Excellent thermal exchange
GENERAL SPECIFICATIONS
Throat Diameter25,4 mm (1 in)
Rated Impedance8 ohm
DC Resistance5,2 Ohm
Minimum Impedance7,8 Ohm at 4000Hz
Le (at 1kHz)66 µH
AES power40 W above 1,6 kHz
Program power80 W above 1,6 kHz
Sensitivity (1W@1m)109 dB
Frequency Range1600Hz ÷ 20kHz
Recomm. Xover Frequency1600Hz (12dB/oct slope)
Diaphragm MaterialTitanium - PEN
Voice Coil Diameter44,4 mm (1 3/4 in)
Voice Coil Winding MaterialEdge-wound aluminum
Magnet MaterialNeodymium
Flux Density2 T
BL Factor9,1 N/A
PolarityPositive voltage on “+” terminal gives positive pressure in the throat
MOUNTING INFORMATIONS
Overall diameter92 mm (3,6 in)
Mounting holes diameter4 M6 holes 90° at Ø 76 mm (3 in)
Bolt circle diameter76 mm (3 in)
Total depth53 mm (2,1 in)
Net weight1,1 Kg (2,4 lb)
Shipping weight1,3 Kg (2,9 lb)
CardBoard Packaging dimensions140x121x64 mm (5.5 x 4.8 x 2.5 in)

Specificatiile Produsului

  • Dimensiune Difuzor 1"
  • Echipamente Sunet Difuzoare
  • Impedanta 8 ohm
  • Putere RMS < 100 W
  • Tehnologie Neodimium
  • Tip difuzor HF Inalte
