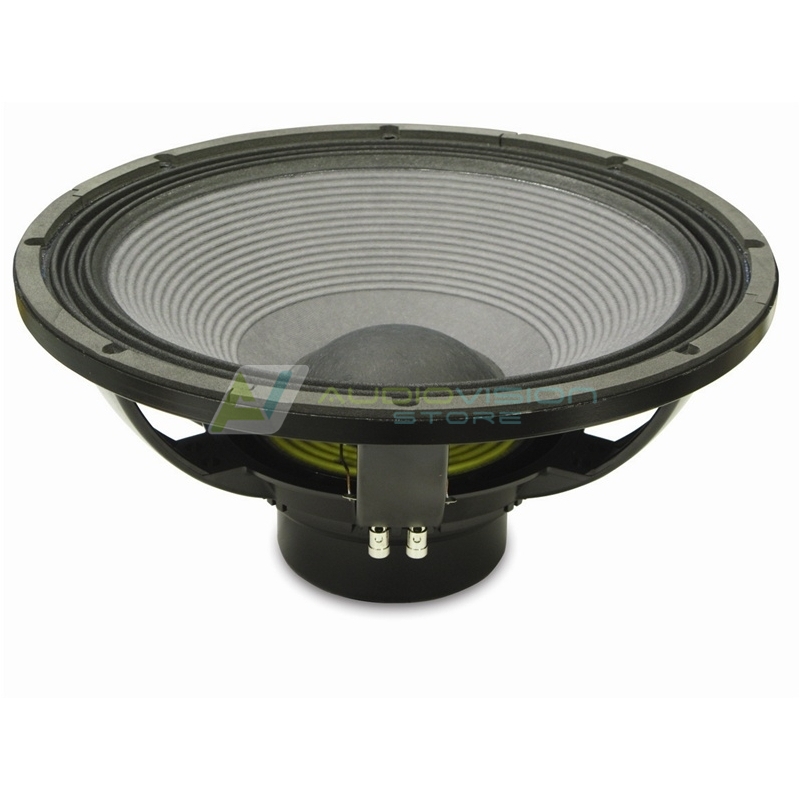

Difuzor LF neodim 18NLW9400

18 Sound
cod produs: 18NLW9400
In Stoc
2084.93 Lei 1772.19 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

  • 98 dB SPL 1W / 1m average sensitivity
  • 100 mm (4 in) Interleaved Sandwich Voice coil (ISV)
  • 2400 Watt program power handling
  • Fiberglass reinforced straight ribbed cone
  • Double Silicon Spider (DSS) for increased excursion control and linearity
  • High grade neodymium magnet assembly
  • Recommended for subwoofer usage in compact vented or bandpass enclosures
  • Weather protected cone and plates for outdoor usage
GENERAL SPECIFICATIONS
Nominal Diameter 460mm (18 in)
Rated Impedance 8 ohm
AES Power 1200W
Program Power 2400W
Peak Power 7000W
Sensitivity 98 dB
Frequency Range 30 - 2500 Hz
Power Compression @ -10 dB 0,7 dB
Power Compression @ -3 dB 1,5 dB
Power Compression @ Full Power 2,2 dB
Max Recomm. Frequency 500 Hz
Recomm. Enclosure Volume 110 ÷ 350 lt. (3.9 ÷ 12.36 cuft)
Minimum Impedance 6,1 ohm at 25°C
Max Peak To Peak Excursion 50 mm (2 in)
Voice Coil Diameter 100 mm (4 in)
Voice Coil Height 24 mm (0.94 in)
Voice Coil Winding Material Copper round wire
Suspension Triple roll, Treated Polycotton
Cone Straight ribbed, Fiberglass reinforced cellulose
THIELE SMALL PARAMETERS
Fs 33 Hz
Re 5 ohm
Sd 0,1225 sq.mt. (189,88 sq.in.)
Qms 6,10
Qes 0,28
Qts 0,26
Vas 268 lt. (9.47 cuft)
Mms 180 gr. (0.40 lb)
BL 26 Tm
Linear Mathematical Xmax ±9,5 mm (±0,37 in)
Le (1kHz) 1,90 mH
Ref. Efficiency 1W@1m (half space) 97,4 dB
MOUNTING INFORMATIONS
Overall diameter 462 mm (18,19 in)
Mounting holes diameter 8 x 8,5 mm (0,33 in)
Bolt circle diameter 438-440 mm (17,24-17,32 in)
Front mount baffle cutout diameter 416 mm (16,38 in)
Rear mount baffle cutout diameter 422 mm (16,61 in)
Total depth 223,5 mm (8,8 in)
Flange and gasket thickness 26 mm (1,02 in)
Net weight 8,7 kg (19.2 lb)
Shipping weight 9,9 kg (21.8 lb)
Packaging dimensions 482 x 482 x 257 mm (19 x 19 x 10,1 in)

Specificatiile Produsului

  • Dimensiune Difuzor 18"
  • Echipamente Sunet Difuzoare
  • Impedanta 4/8 ohm
  • Putere RMS > 1000 w
  • Tehnologie Neodimium
  • Tip difuzor LF Bass - Joase
