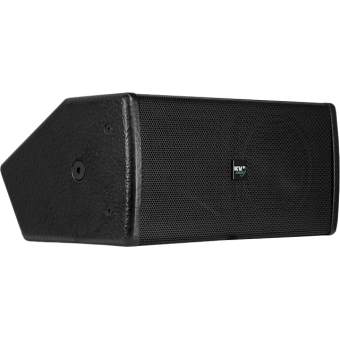

ESD5 - The Ultimate Compact Passive System

KV2 Audio
cod produs: KVV 987 340
In Stoc
3972.29 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

The ESD5 is a very high quality 2-way full-range compact footprint passive loudspeaker with a performance output that defies its size. Delivering exceptional clarity for speech and program reproduction, the ESD5 is perfect for discreet installations and audio visual presentations where sound quality is paramount, but aesthetic dimensions are of equal importance. The ESD5’s high impedance capability means that up to sixteen units can be run from a single suitable quality stereo amplifier, to provide a high fidelity background program throughout a venue.

System Acoustic Perfomance

Max SPL Long-term 115dB
Max SPL Peak 118dB
-3dB Response 130Hz - 22kHz
Recommended Power 170W
Sensitivity 90dB
Impedance 16Ω
Crossover Point 3.0kHz

High Frequency Section

Acoustic Design Horn Loaded
High Horn Coverage Horizontal / Vertical 90° x 90°
Throat Exit Diameter / Diaphragm Size 1" / 1.3”
Diaphragm Material Titanium
Magnet Type Ferrite
Protection RMS Limiter

Low Frequency Section

Acoustic Design Closed box
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Ferrite
Protection RMS Limiter

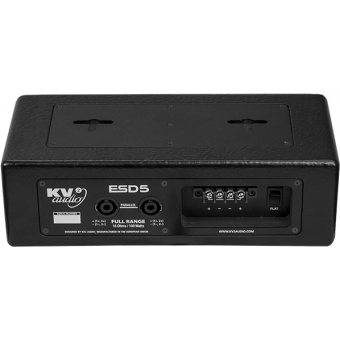

Speaker Input

Speaker Input 2x Neutrik Speakon®, Terminal Block

Cabinet

Cabinet Material Baltic birch
Pole Mount 35mm
Color Orange peeled Matt Black or any RAL

Physical Dimensions

Height 150mm (5.9")
Width 316mm (12.4")
Depth 224,7mm (8.84")
Weight

Specificatiile Produsului

  • Dimensiune Difuzor 5"
  • Dimensiuni goarna 1''
  • Dupa aplicatie Instalatii fixe
  • Impedanta 16 ohm
  • Numar Cai 2-cai
  • Putere RMS > 100 W
  • Tipuri Boxe Boxe pasive
