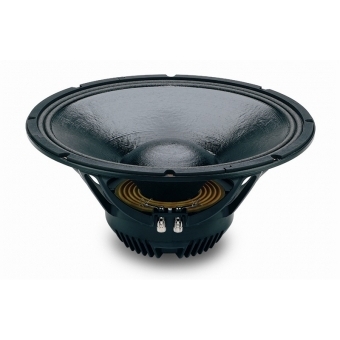

Difuzor LF neodim 15ND930 - 16 OHM

18 Sound
cod produs: 15ND930-16OHM
La comanda
1427.44 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

  • 98 dB SPL 1W / 1m average sensitivity
  • 75 mm (3 in) edgewound voice coil
  • 500W AES power handling
  • Neodymium magnet assembly
  • Double Demodulating Rings (DDR) for lower distortion
  • Humidity resistant cone
  • Ideal for two way systems and for high loading compact subwoofer applications
GENERAL SPECIFICATIONS
Nominal Diameter 380mm (15 in)
Rated Impedance 8 Ohm
AES Power 500W
Program Power 800W
Peak Power 1600W
Sensitivity 98 dB
Frequency Range 40 - 4100 Hz
Power Compression @-10dB 0,6 dB
Power Compression @-3dB 1,9 dB
Power Compression @Full Power 2,8 dB
Max Recomm. Frequency 1700 Hz
Recomm. Enclosure Volume 60 ÷ 140 lt. (2,12 ÷ 4,95 cuft)
Minimum Impedance 6,8 Ohm at 25°C
Max Peak To Peak Excursion 33 mm (1,3 in)
Voice Coil Diameter 75 mm (3 in)
Voice Coil Winding Material copper
Suspension M-roll, Polycotton
Cone Curvilinear, Treated paper
THIELE SMALL PARAMETERS
Fs 36 Hz
Re 5,5 Ohm
Sd 0,085 sq.mt. (131,75 sq. in.)
Qms 5,3
Qes 0,23
Qts 0,22
Vas 206 lt. (7,28 cuft)
Mms 101 gr. (0,22 lb)
BL 23,8 Tm
Linear Mathematical Xmax ± 7,5 mm (± 0,30 in)
Le (1kHz) 1,61 mH
Ref. Efficiency 1W@1m (half space) 98,2 dB
MOUNTING INFORMATIONS
Overall diameter 387 mm (15,24 in)
N. of mounting holes 8
Mounting holes diameter 7,15 mm (0,28 in)
Bolt circle diameter 370-371 mm (14,57-14,61 in)
Front mount baffle cutout ø 353 mm (13,9 in)
Rear mount baffle cutout ø 357 mm (14,06 in)
Total depth 177 mm (7 in)
Flange and gasket thickness 11,5 mm (0,45 in)
Net weight 4,1 kg (9 lb)
Shipping weight 4,8 kg (10,5 lb)
CardBoard Packaging dimensions 405 x 405 x 214 mm (15,94 x 15,94 x 8,43 in)

Specificatiile Produsului

  • Dimensiune Difuzor 15"
  • Echipamente Sunet Difuzoare
  • Impedanta 4/8/16 ohm
  • Putere RMS > 500 W
  • Tehnologie Neodimium
  • Tip difuzor LF Bass - Joase
