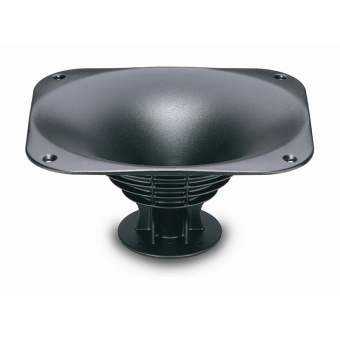

Goarna HF XT1086

18 Sound
cod produs: XT1086
La comanda
255.93 Lei 179.15 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

  • 1 inch throat entry
  • Unique Eighteen Sound elliptical shape (ESS)
  • Flat front and compact size
  • Die-cast aluminum construction for best heat transfer
  • Uniform on-axis and off-axis frequency response
  • 80° x 60° horizontal and vertical constant coverage
  • Improved structure strength by exclusive computer aided vibrational analysis
GENERAL SPECIFICATIONS
Throat Diameter25,4 mm (1 in)
Horizontal Coverage (-6 dB)80° (1 ÷ -8) average range(1,6kHz - 12,5kHz)
Vertical Coverage (-6 dB)60° (18 ÷ -7) average range(1,6kHz - 12,5kHz)
Directivity Index10 dB (1.3 ÷ -0,4) average range (1.6kHz - 12.5kHz)
Usable Frequency RangeAbove 800 Hz
Recomm. Cross. Frequency1200 Hz or more
Sensitivity (on axis)110 dB
Frequency Range1200 Hz ÷ 20kHz
MaterialDie-cast aluminum
MOUNTING INFORMATIONS
Mouth Height215 mm (8,5 in)
Mouth Width260 mm (10,2in)
Depth126 mm (5 in)
Mouth Mounting Specs4 M6 holes on the edge of rectangle with 214 mm x 169 mm (8,43 x 6,65 in) sides
Driver Mounting Specs3 M5 holes on ø 57mm (2.24in) - 4 M6 holes on ø 76mm (3in)
Net weight1 Kg (2,20 lb)

Specificatiile Produsului

  • Dimensiuni goarna 1''
  • Material goarna Plastic
  • Tip goarna Top
