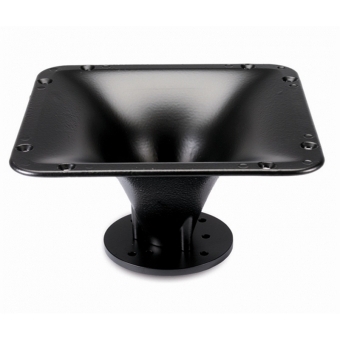

Goarna HF XR1064

18 Sound
cod produs: XR1064
In Stoc
301.24 Lei 210.87 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

  • 1 inch throat entry
  • Aluminum construction for excellent heat transfer
  • Uniform on-axis and off-axis frequency response
  • 60° x 40° horizontal and vertical constant coverage
  • Very low distortion at high sound pressure
  • Rotatable structure
GENERAL SPECIFICATIONS
Throat Diameter25,4 mm (1 in)
Horizontal Coverage (-6dB)60° (20 ÷ -10) average range (1,6kHz - 12,5kHz)
Vertical Coverage (-6 dB)40° (40 ÷ 0) average range (1,6kHz - 12,5kHz)
Directivity Index11dB (1.8 ÷ -2,6) average range (1,6kHz - 12,5kHz)
Usable Frequency RangeAbove 800 Hz
Recomm. Cross.Frequency1200 Hz or more
Sensitivity (on axis)110 dB
Frequency Range800 Hz - 18KHz
MaterialLow pressure injected aluminum
MOUNTING INFORMATIONS
Mouth Height210 mm (8,3 in)
Mouth Width210 mm (8,3in)
Depth110 mm (4,3 in)
Mouth Mounting Dimensions8 ø 6 holes
Driver mounting specs3 M5 holes on ø 57mm (2.24in) - 4 M6 holes on ø 76mm (3in)
Net weight1,5 Kg (3,3 lb)

Specificatiile Produsului

  • Dimensiuni goarna 1''
  • Material goarna Aluminiu
  • Tip goarna Top
