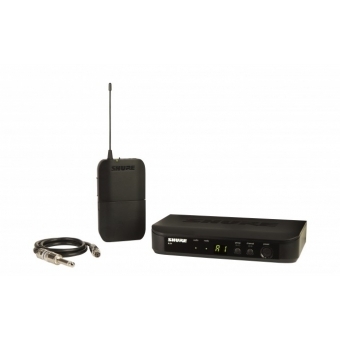

Bodypack Sistem Wireless SHURE/Guitarists and Bassists/BLX14E

Shure
cod produs: BLX14E
La comanda
1295.20 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

The most accessible Shure Wireless Guitar System with simple setup and an intuitive interface for performance you can trust in.

Entry level wireless system for guitarists and bassists with analog transmission.

What receiver comes with the PG Wireless Guitar System?

The PG Wireless Guitar System comes with the Analog Wireless Receiver BLX4 that provides improved linearity and frequency response.

The receiver BLX is ready to perform right out of the box and is the clearest choice for performers who wish to unplug from the wire. It’s also available as rack mount, metal receiver and Dual Receiver.

How many musicians can use this system simultaneously?

Up to 12 compatible channels per group with group and channel scan for easy set-up.

Why internal antennas?

For ideal signal strength, antennas on a wireless system need to be set up in a certain way. The internal antennas on the BLX receiver are already set in this ideal way, offering up to 100 m operating range and optimal signal strength.

Additionally internal antennas cannot be broken during setup, use or transport.

Is the setup really that easy?

Yes, with one button you can start the group and channel scan, which gives you the best open frequency. Adjust the transmitter to the same channel and you’re ready to go.

What does “Linearity” mean?

The proportion between input signal of the transmitter and output signal of the receiver is always constant.

Entry point to professional Shure quality, ruggedness and sound.

WA302

  • Cable, instrument, 2.5 foot (.75 m)
  • 4-pin mini connector (TA4F) to 1/4-inch connector

BLX1 Bodypack Transmitter

  • Power and battery status LED
  • Adjustable gain control
  • Quick and easy frequency matching
  • AA batteries (included) provide up to 14 hours of continuous use
  • 100 m (300 ft.) operating range (line of sight)

Receiver BLX4

  • Up to 12 compatible systems (region dependent)
  • Microprocessor-controlled internal antenna diversity
  • One touch QuickScan locates the best open frequency
  • ¼" and XLR audio outputs
  • Two color audio status indicator LED

Furnished Accessories

  • Swivel adapter, part number: 90F4046
  • Power supply PS23E
  • Thread adapter: 31B1856

System technical specifications

  • Compatible systems per frequency band (up to): 12
  • Selectable frequencies: Up to 150
  • Auto Setup Features: QuickScan : Finds group with most compatible frequencies and sets to best frequency
  • Audio Reference Companding: No
  • Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable
  • Antenna Options: No
  • Receiver Network Ability: No
  • PC Control: No
  • Rack Hardware: URT2 (not included), Rack mount brackets (only with rackable/BLX-R Sets)
  • Case: No
  • Transmitter Display: LED
  • Receiver Display: BLX4, BLX88: LED, BLX4R: High-resolution LCD screen
  • Battery, Endurance: 2AA, up to 14h
  • Environment: Small to medium stages

Further Technical Specs

  • Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)
  • Available Frequencies: Between 524–865 MHz (available frequencies depend on applicable regulations in country where system used)
  • Audio Range: 50–15,000 Hz (dependent on microphone type)
  • Transmitter RF Output Power: 10 mW, typical (varies by region)
  • Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
  • Battery Life: Up to 14 hours
  • Dynamic Range: 100 dB A-weighted
  • System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
  • Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
  • Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
  • BLX4: 12–18 V DC at 150 mA, supplied by external power supply

Component Specifications:

BLX4 Receiver

  • Output Impedance:
    • - XLR connector 200 Ω
    • - 6.35 mm (1/4") connector: 50 Ω
  • Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
    • - XLR connector –27 dBV (into 100 kΩ load)
    • - 6.35 mm (1/4") connector –13 dBV (into 100 kΩ load)
  • RF Sensitivity: 105 dBm for 12 dB SINAD, typical
  • Image Rejection: >50 dB, typical
  • Dimensions: 40 mm X 188 mm X 103 mm (H x W x D)
  • Weight: 241 g
  • Housing: Molded ABS
  • Power Requirements: 12–15 V DC @ 160 mA, supplied by external power supply (tip positive)

BLX1 Bodypack Transmitter

  • Audio Input Level:
    • - gain max: -16 dBV maximum
    • - gain min (0 dB): +10 dBV maximum
  • Gain Adjustment Range: 26 dB
  • Input Impedance: 1 MΩ
  • RF Transmitter Output: 10 mW, typical, varies by region
  • Dimensions: 110 mm x 64 mm x 21 mm (H x W x D)
  • Weight: 75 g, without batteries
  • Housing: Molded ABS
  • Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
  • Battery Life: up to 14 hours (alkaline)

Specificatiile Produsului

  • Componente Sisteme Wireless Receptor, Transmitator
  • Microfoane dupa aplicatie Instrument
  • Sisteme Wireless Instrument
  • Tip Sistem Wireles Instrument
  • Tipuri microfoane Sisteme microfon wireless
