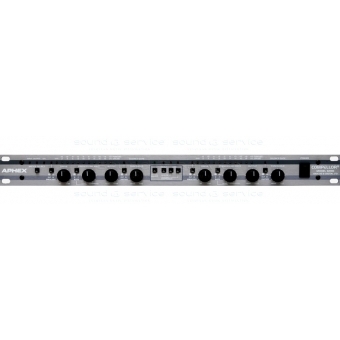

Aphex 320 D

cod produs: 309721
La comanda
6427.46 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

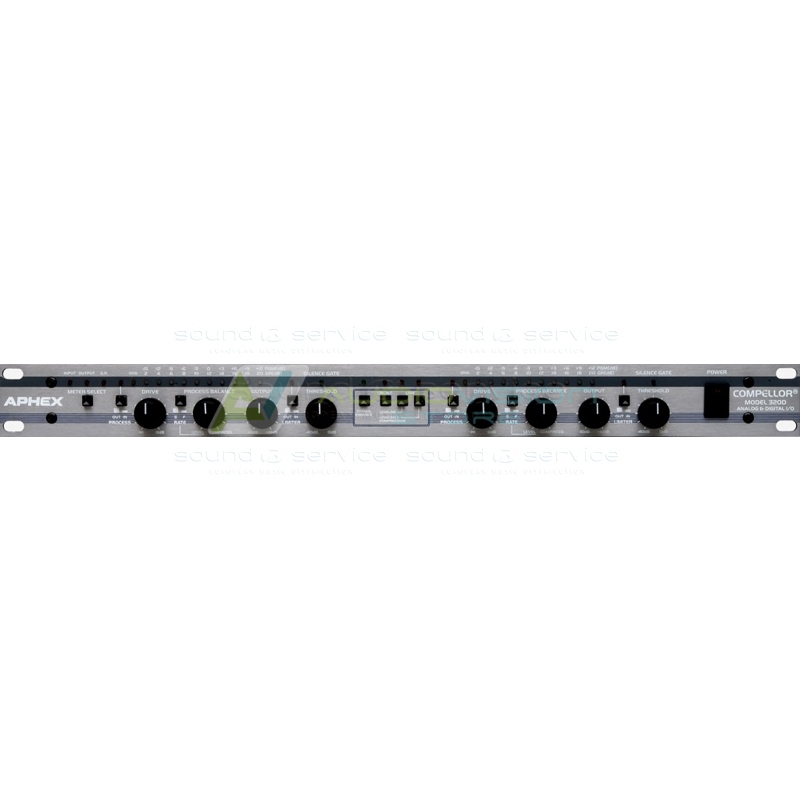

Aphex 320D Compellor

 Stereo Audio Level Controller



 The patented technologies within the 320D are totally unique. By going beyond conventional design ideas, the 320D provides audio processing with unprecedented sound transparency, yet is exceedingly effective at controlling levels. No other product can match the performance of the 320D. Algorithms like our FDL,” “DVG,and DRC” have yet to find any rivals.



 The 320Ds Frequency Discriminate Leveler section, with the Dynamic Verification Gate and the Silence Gate, slowly adjusts the volume level of an audio stream with very complex algorithms that hide its work. It works differently at different frequencies and stops processing when the sound stops, then resumes instantly when the sound reappears, so there's no distracting increases in program background noise. When you listen, you know the levels are made more even, but you dont perceive the levels are shifting.



 The 320Ds Variable Slope Compressor, Dynamic Recovery Computer and Dynamic Verification Gate add adaptable compression to match the texture of changing audio sources. You dont hear pumping or other audio artifacts, just natural sound that is evenly consistent in loudness.



 The 320Ds limiter acts on peaks that shoot beyond average program levels so they are easy to handle by any analog or digital recording system.



 The 320D can act as two independent mono processors or one linked stereo processor, which is selectable on the front panel. This is true with both analog and digital I/O.



 When the analog input is used, the digital output contains the 320Ds processing. When the digital input is used, the analog output contains the 320Ds processing, properly leveled.



 Aphex builds products that last and last without need for repairs or calibration. Some Compellors have literally been in 24-hour use in the same rack for a decade or longer! When you specify a Compellor, you know it will do its job flawlessly and give you peace of mind.



 Features:



 •  Delivers transparent audio level control for broadcast, recording, and live sound



  Balanced analog input and output

  AES digital input and output

  Dual mono or stereo operation

Applications:

 •  Broadcast pre-processing



  MP3 encoding and playback

  Recording

  Installed and mobile sound

  DAW input

  Mastering

  Satellite uplinks

  Background music

  Ham radio

  Tape duplication

 •  Cable TV


Specifications:

 •  Audio



  Frequency Respons: 10Hz – 38 kHz(± 0.5dB)

  Dynamic Range: 120 dB

  Hum and Noise(unweighted 22Hz-22kHz): -93 dBu

  Crosstalk(10 Hz – 22kHz): -79 dB

  THD(10 Hz – 22kHz at max. output): .0003%

  IMD(10 Hz – 22kHz at max. output): .0007%

  Input

  If level set to +4 dBu

  Connector: XLR-3F and 1/4″ TRS Phone Jacks

  Type: Transformerless, active balanced

  Balanced: 40k ohms

  Unbalanced: 20k ohms

  Maximum Level: +27 dBu

  CMRR: >40 dB

  If level set to -10dBv (-7.8dBu)

  Connector: XLR-3F and 1/4″ TRS Phone Jacks

  Type: Transformerless, active balanced

  Balanced: 40k ohms

  Unbalanced: 20k ohms

  Maximum Level: +12.5 dBV (+14.8 dBu)

  CMRR: >40 dB

  Output

  Connector: XLR-3M and 1/4″ TRS Phone Jacks

  Type: Active balanced(may be used unbalanced)

  Balanced: 112 ohms

  Unbalanced: 56 ohms

  Maximum Level: +27dBu Unloaded; +25 into 600 ohms

  Other Specifications

  Power requirements: 90-250 VAC 50-60 Hz 12W

  Dimensions: 19W x 1.75H x 8.25″ D 1 Rack U(482.6mm x 44.5mm x 209.6mm)

  Net Weight: 6 lbs(2.73 kg)
